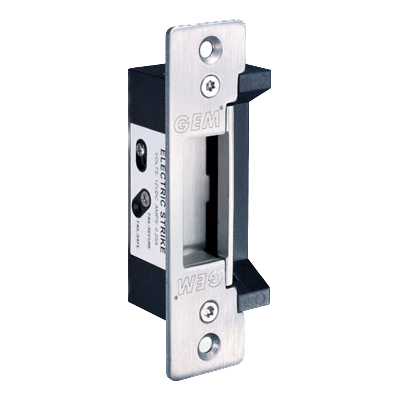

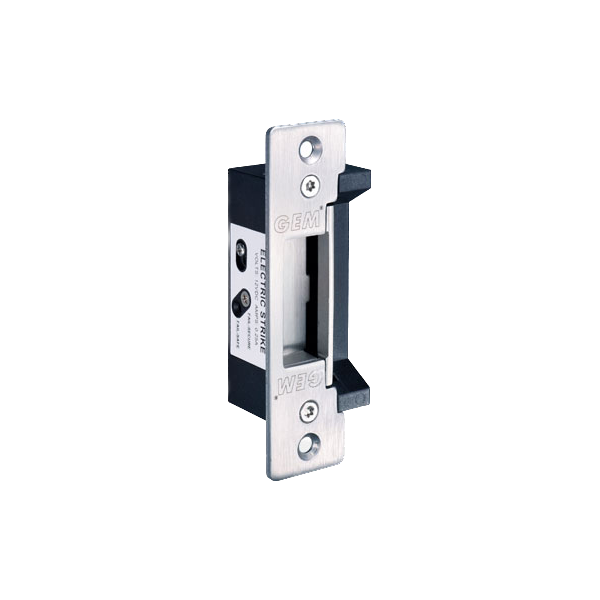

GIAGK300 GK300 Series Electric Strike Stainless Steel 454kg Holding Force 12-24VDC - Single

The GIAGK300 is a high-quality ANSI electric strike designed for cylindrical locksets and mortise applications in hollow metal frames. Measuring a 1-3/4 in keeper width with a 9/16 in (15 mm) latch throw, it features stainless steel construction with a brushed US32D silver finish and a non-handed, field-reversible mechanism to ensure reliable performance and simplified installation.

Ideal for access-controlled commercial and residential doors, it complies with UL1034, UL294, and CE requirements and offers dual-voltage 12/24 VDC operation with low current draw and recess (mortise) mounting, making it suitable for high-traffic environments and integrated security systems.

Key Features

  • 1,000 lbs (454 kg) static holding force and 50 ft-lbs dynamic strength for secure door retention
  • Stainless steel build with US32D brushed finish for corrosion resistance and long service life
  • Field reversible fail-safe or fail-secure non-handed design for fast install and servicing
  • UL1034 and UL294 listed plus CE compliant for dependable code-aligned integration
  • Dual 12/24 VDC operation drawing 280 mA at 12 VDC or 140 mA at 24 VDC with recess mortise mount and included trim plate
  • COLOR SILVER
  • PRODUCT TYPE ELECTRIC STRIKE
