ASSA LOCKWOOD ASA3782ELSS 23MM BACKSET ELECTRIC MORTICE LOCK MONITORED LSS DSS LED FAIL SAFE/FAIL SECURE 9-28V

Product Code: ASA3782ELSS

Supplier SKU: ASA3782ELSS

Condition: New product

More info
Specifications
Download

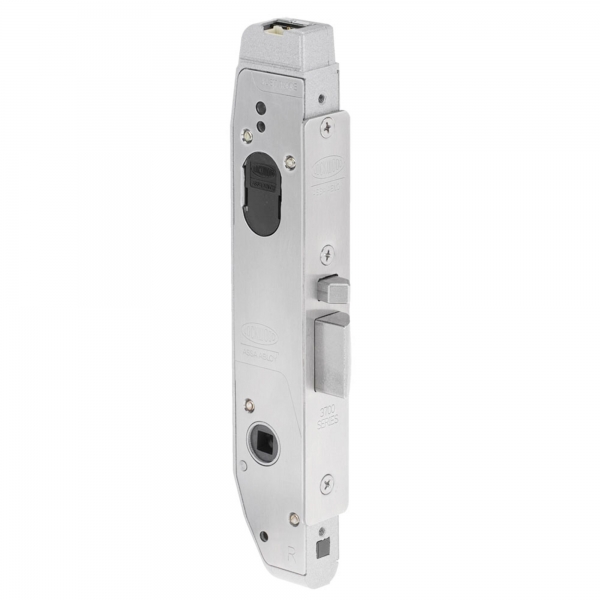

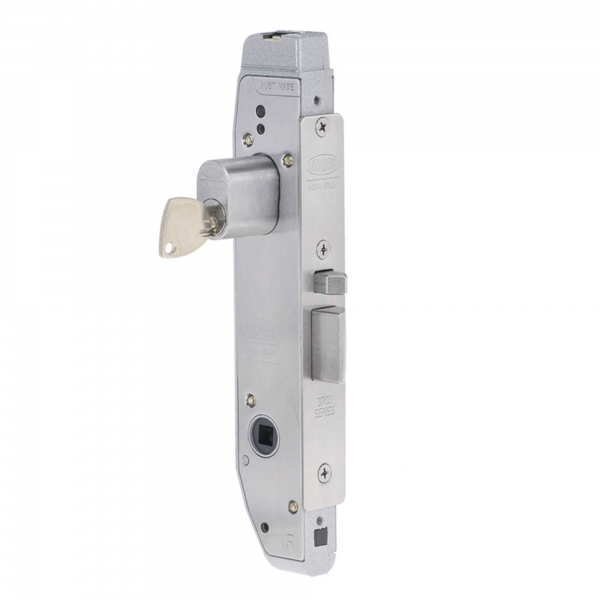

ASSA LOCKWOOD ASA3782ELSS Lockwood Selector 3782EL Electric Mortice Lock 23mm Backset - Satin Stainless Steel

The ASSA LOCKWOOD 3782ELSS is a high-quality short backset electric mortice lock designed for narrow stile hinged doors where secure access control and dependable egress are essential. Measuring a 23mm backset with a 15mm stainless steel latchbolt projection, it features a high purity zinc alloy case with stainless steel chassis plates and a satin stainless steel faceplate to ensure strength, corrosion resistance, and smooth long-life operation.

Ideal for commercial offices, retail, education, health, and multi-tenant sites, it runs on 9-28VDC with field-selectable fail safe or fail secure and power to lock or power to open operation, while monitored outputs including door position, deadlatch, lock status, request to exit, and key override plus on-board door status LEDs improve system visibility and installer efficiency, making it suitable for modern access control and monitored escape door applications.

Key Features

Variable voltage 9-28VDC electric mortice lock with motor driven mechanism and 300mA max current draw for reliable access control
Monitored LSS DSS REX and key override outputs 30VDC 50mA max plus on-board red green door status LEDs for clear diagnostics and compliance-ready monitoring
23mm short backset for narrow stile doors with 3-6.5mm door clearance and suitability for 32-50mm door thickness with extension kits available
AS 4145.2-2008 performance with S8 security D8 durability and C6 anti-corrosion plus RCM certification for commercial confidence
Supplied with 3.6m cable and 12 pin connector moisture deflecting boot and compatibility with Lockwood 4800 and 5800 furniture and Lockwood oval cylinders with X7 cams included
