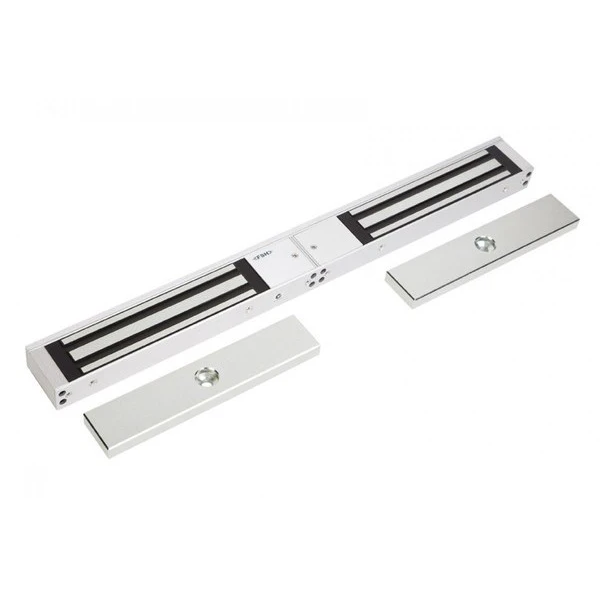

FSH FEM4300DM-HV Double Electromagnetic Maglock Monitored Hi Vis LED - 280kg-12-24VDC

The FEM4300DM-HV is a high-quality double monitored electromagnetic maglock designed for secure access control on double doors in commercial and high-traffic environments. Delivering up to 280kg holding strength per magnetic lock, it features dual-voltage 12/24VDC operation, an anodized aluminium body, and a hi-vis red green bi-colour LED to ensure strong holding force, clear status indication, and dependable daily performance.

Ideal for offices, education, healthcare, retail, and controlled entry points, it includes lock status sensor and door status sensor monitoring for accurate feedback to access control systems and faster fault diagnosis. Fire rated up to 2 hours in accordance with AS1905.1:2015 and engineered for clean release, it offers compliant, installer-friendly security and enhanced site safety for interior doors and protected outdoor locations.

Key Features

  • Double maglock design with up to 280kg holding strength per lock for robust double door security
  • Dual voltage 12VDC 500mA or 24VDC 250mA with double configuration current x2 for flexible power design
  • Monitored outputs with lock status sensor and door status sensor plus hi vis red green LED indication
  • Fire rated up to 2 hours in accordance with AS1905.1:2015 for compliant fire door applications
  • Anodized aluminium construction with compact 476 x 48 x 25 mm magnet body for clean professional installs
  • COLOR SILVER
  • PRODUCT TYPE MAGNETIC DOOR LOCK
