> >>JACK FUSE ATMOD2R EOL RESISTOR MODULE 22K/22K REVERSE ORANGE 48X

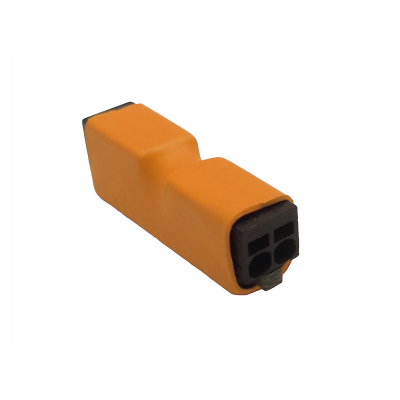

New JACK FUSE ATMOD2R EOL RESISTOR MODULE 22K/22K REVERSE ORANGE 48X View larger

JACK FUSE

JACK FUSE ATMOD2R EOL RESISTOR MODULE 22K/22K REVERSE ORANGE 48X

JKFATMOD2R-48

ATMOD2R-48

New product

JKFATMOD2R-48 ATMOD2R EOL Resistor Module 22K/22K Reverse - 48x Orange

The JKFATMOD2R-48 is a high-quality end of line resistor module designed for fast, error-proof termination in electronic access control and intrusion alarm systems. Measuring 24 L x 7 W x 8 H mm, it features a rugged polyamide 46 insulated housing with a pre-built PCB and push-in spring-clamp terminals to ensure secure, vibration-resistant connections and dramatically reduced installation time.

Ideal for Siemens panel integrations requiring reverse orientation (tab to security panel), it complies with RoHS and AUS/NZ RMC-EMC 61000.6.3 and offers color-coded orange insulation with a clear orientation tab and reusable design, making it suitable for commercial, industrial, and campus security environments.

Key Features

  • 22K/22K EOL values in reverse orientation for Siemens systems
  • Durable polyamide 46 with fiberglass and polyolefin for long service life
  • Tool-less push-in terminals and orientation tab for quick, mistake-free wiring
  • RoHS and AUS/NZ 61000.6.3 compliant for assured quality
  • Supplied in a 48 pack for efficient workshop kitting and field deployment
  • COLOR ORANGE
  • PRODUCT TYPE EOL RESISTOR PACK
