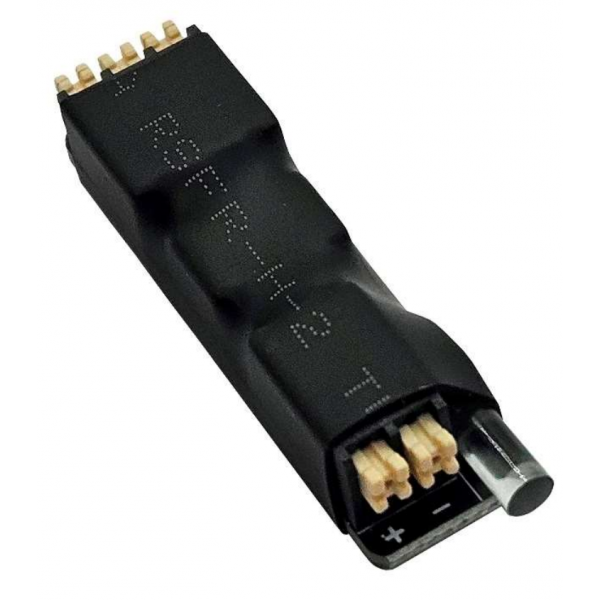

> >>JACK FUSE MINI-FRI-12 FIELD RELAY INTERFACE 12VDC SPDT 2A BLACK

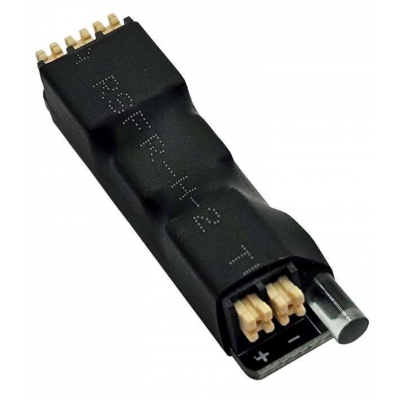

New JACK FUSE MINI-FRI-12 FIELD RELAY INTERFACE 12VDC SPDT 2A BLACK View larger

JACK FUSE

JACK FUSE MINI-FRI-12 FIELD RELAY INTERFACE 12VDC SPDT 2A BLACK

JKFMINI-FRI-12

MINI-FRI-12

New product

JKFMINI-FRI-12 Mini FRI Field Relay Interface 12VDC SPDT 2A Black - 48x13x11mm

The JKFMINI-FRI-12 is a high-quality field relay interface designed for converting a DC control signal into a clean SPDT dry contact for access control and security automation. Measuring 48 x 13 x 11 mm, it features a rugged polyamide 46 body with fiberglass and polyolefin plus push-in spring-clamp terminals, onboard reverse-polarity and kickback protection, and an LED indicator to ensure reliable switching, fast installation, and long service life.

Ideal for interfacing readers, door and gate controls, monitoring circuits, and upgrading transistor outputs, it complies with RoHS and AUS/NZ RMC-EMC 61000.6.3 and offers low pick-up and drop-out voltages for dependable performance on long cable runs or sagging supplies, making it suitable for commercial, industrial, and campus environments.

Key Features

  • SPDT 1 Form C dry contact rated to 2.2A at 5–30VDC for robust signal and power switching
  • Durable polyamide 46 construction with fiberglass and polyolefin for stability in demanding installs
  • Tool-less spring terminals accepting 0.2–1.5 mm² 24–16 AWG and LED status for quick, error-free wiring
  • 12VDC coil 8–15V operating range with reverse-polarity and back EMF protection; RoHS and 61000.6.3 compliant
  • Slim inline form factor for door frames switch plates controllers and tight junction boxes
  • COLOR BLACK
  • PRODUCT TYPE RELAY BOARD
