> >>JACK FUSE FAST-R6J WIEGAND READER JOINER 6-WAY QUICK CONNECT 10X PACK
New JACK FUSE FAST-R6J WIEGAND READER JOINER 6-WAY QUICK CONNECT 10X PACK View larger

JACK FUSE

JACK FUSE FAST-R6J WIEGAND READER JOINER 6-WAY QUICK CONNECT 10X PACK

JKFFASTR6J-PKT10

FASTR6J-PKT10

New product

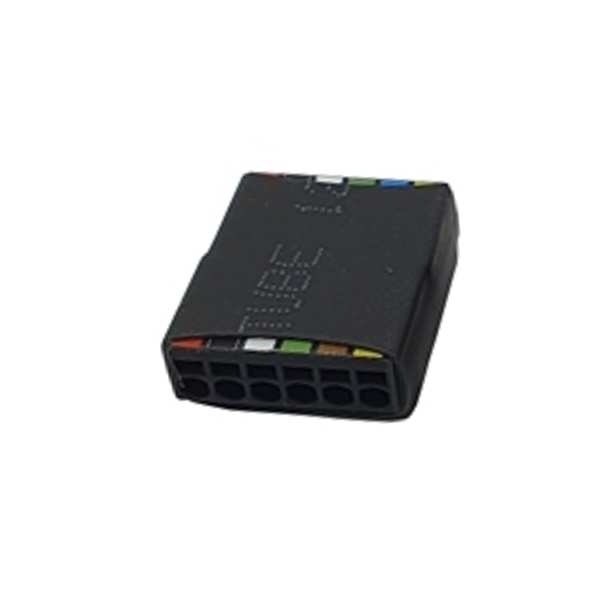

JKFFASTR6J-PKT10 FAST-R6J Wiegand Reader Joiner 6 Way Quick Connect - 20.5x17x8mm Pack 10

The JKFFASTR6J-PKT10 is a high-quality Wiegand reader joiner designed for fast, tool-less connection of card reader tails to security cable. Measuring 20.5 x 17 x 8 mm, it features colour-coded spring-clamp terminals in a durable polyamide 46 housing with fiberglass and polyolefin to ensure reliable data and power transfer while cutting installation time and faults.

Ideal for access control installations across commercial, industrial, and campus sites, it complies with RoHS and AUS/NZ RMC-EMC 61000.6.3 and accepts 0.2–0.5 mm² (24–20 AWG) conductors with up to 2A on red/black power traces, making it perfect for tight wall cavities, door frames, ducts, and junction boxes.

Key Features

  • Six-way Wiegand reader joiner for power, data, LED and buzzer lines
  • Rugged polyamide 46 body with fiberglass and polyolefin for long service life
  • Colour-coded quick connect spring terminals for rapid, mistake-free wiring
  • RoHS and AUS/NZ 61000.6.3 compliant for quality and EMC assurance
  • Supplied in a pack of 10 for efficient kitting and field deployment
  • COLOR BLACK
  • PRODUCT TYPE QUICK CONNECT JOINER
