> >>JACK FUSE FAST-R4T-120 RS485/OSDP READER TERMINATOR 120E YELLOW 10X PACK

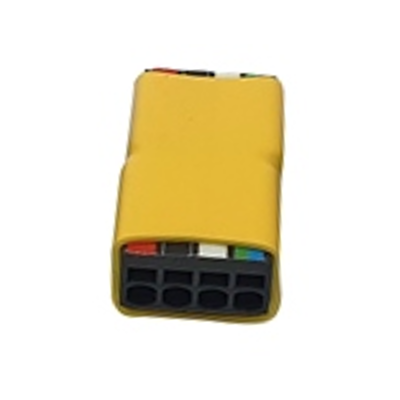

New JACK FUSE FAST-R4T-120 RS485/OSDP READER TERMINATOR 120E YELLOW 10X PACK View larger

JACK FUSE

JACK FUSE FAST-R4T-120 RS485/OSDP READER TERMINATOR 120E YELLOW 10X PACK

JKFFASTR4T-120-10

FASTR4T-120-10

New product

JKFFASTR4T-120-10 FAST-R4T-120 RS485 OSDP Reader Terminator 120E Yellow - 22x12.5x8mm Pack 10

The JKFFASTR4T-120-10 is a high-quality RS485/OSDP reader terminator designed for quick, tool-less end-of-line termination to stabilize data communication on access control networks. Measuring 22 x 12.5 x 8 mm, it features a rugged polyamide 46 housing with fiberglass and polyolefin plus colour-coded spring-clamp terminals to ensure secure connections, consistent 120E termination, and faster, fault-free installs.

Ideal for daisy-chained RS485 and OSDP card readers at the line end, it complies with RoHS and AUS/NZ RMC-EMC 61000.6.3 and offers reusable terminals accepting 0.2–0.5 mm² (24–20 AWG) conductors with up to 2A on power traces, making it suitable for commercial, industrial, and campus security environments.

Key Features

  • Integrated 120E termination for reliable RS485/OSDP reader comms at end of line
  • Durable polyamide 46 body with fiberglass and polyolefin for long service life
  • Colour-coded spring-clamp terminals accept 0.2–0.5 mm² conductors for fast, tool-less wiring
  • RoHS and AUS/NZ 61000.6.3 compliant for quality and EMC assurance
  • Supplied in a yellow, compact 10 pack for efficient kitting and field deployment
  • COLOR YELLOW
  • PRODUCT TYPE QUICK CONNECT TERMINATOR
