JKFFASTR4J-10 FAST-R4J 4 Way RS485 OSDP Reader Joiner Quick Connect - 20.5x12x8mm Pack 10

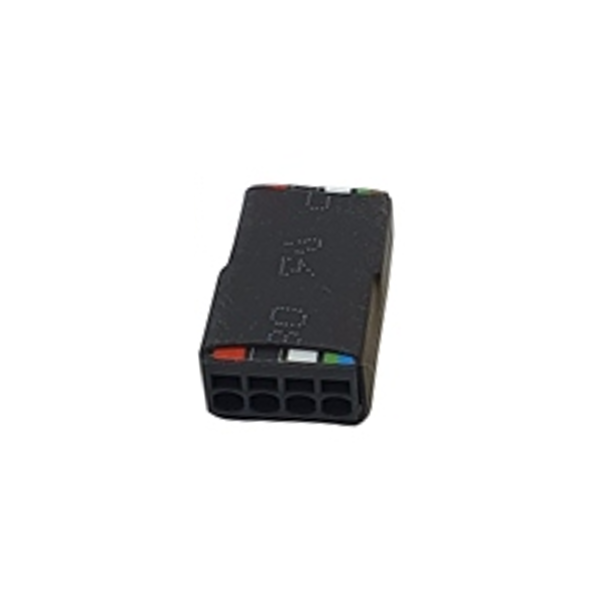

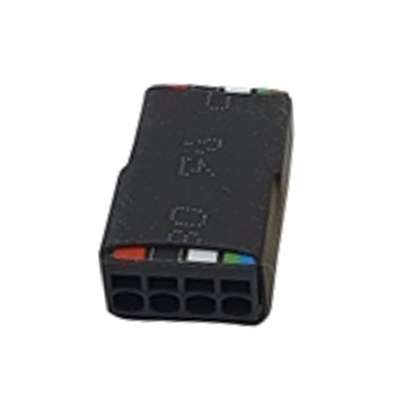

The JKFFASTR4J-10 is a high-quality four-way RS485/OSDP reader joiner designed for fast, tool-less termination of access control card reader tails to security cable. Measuring 20.5 x 12 x 8 mm, it features colour-coded, quick connect spring-clamp terminals in a durable polyamide 46 housing with fiberglass and polyolefin to ensure reliable data and power connections, reduced installation time, and repeatable, fault-free results.

Ideal for RS485 and OSDP reader wiring in commercial, industrial, and campus security systems, it complies with RoHS and AUS/NZ RMC-EMC 61000.6.3 and offers reusable connectors that accept 0.2–0.5 mm² (24–20 AWG) conductors with up to 2A on power traces, making it suitable for tight wall cavities, door frames, ducts, and junction boxes.

Key Features

  • 4-way RS485/OSDP joiner accepts 0.2–0.5 mm² conductors and supports 2A on red/black power lines for stable reader connections
  • Rugged polyamide 46 body with fiberglass and polyolefin for long service life
  • Colour-coded spring-clamp terminals and compact size for quick, mistake-free wiring in confined spaces
  • RoHS and AUS/NZ 61000.6.3 compliant for assured quality and EMC performance
  • Supplied in a pack of 10 for efficient kitting and field deployment
  • COLOR BLACK
  • PRODUCT TYPE QUICK CONNECT JOINER
