> >>JACK FUSE ATMOD47 EOL RESISTOR MODULE 4K7/4K7 48X PACK YELLOW
New JACK FUSE ATMOD47 EOL RESISTOR MODULE 4K7/4K7 48X PACK YELLOW View larger

JACK FUSE

JACK FUSE ATMOD47 EOL RESISTOR MODULE 4K7/4K7 48X PACK YELLOW

JKFATMOD47-48

ATMOD47-48

New product

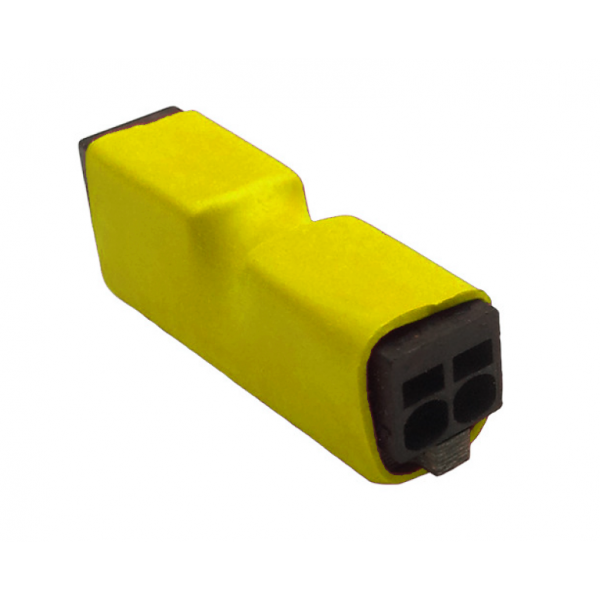

JKFATMOD47-48 ATMOD47 EOL Resistor Module 4K7/4K7 - 48x Yellow

The JKFATMOD47-48 is a high-quality end of line resistor module designed for rapid, error-proof termination in electronic access control and intrusion alarm systems. Measuring 24 L x 7 W x 8 H mm, it features a rugged polyamide 46 insulated body with a pre-built PCB and quick-connect push-in spring terminals to ensure secure, vibration-resistant connections and dramatically reduced installation time.

Ideal for Gallagher-compatible panels and general door, sensor, and lock monitoring, it complies with RoHS and AUS/NZ RMC-EMC 61000.6.3 and offers color-coded yellow insulation, a clear orientation tab, and reusable design—making it suitable for commercial, industrial, and campus security environments.

Key Features

  • 4K7/4K7 EOL values for stable line supervision and Gallagher panel compatibility
  • Durable polyamide 46 with fiberglass and polyolefin for long service life
  • Tool-less push-in terminals (accepts 0.2–0.5 mm² conductors) and orientation tab for fast, mistake-free wiring
  • RoHS and AUS/NZ 61000.6.3 compliant for assured quality and EMC performance
  • Supplied in a 48 pack to streamline workshop kitting and field deployment
  • COLOR YELLOW
  • PRODUCT TYPE EOL RESISTOR PACK
