> >>PBT-020-4 ROUND PUSH BUTTON SLIM/MULLION STAINLESS STEEL PRESS TO EXIT DPDT MOMENTARY 115Hx43Wx32D (MM) SILVER

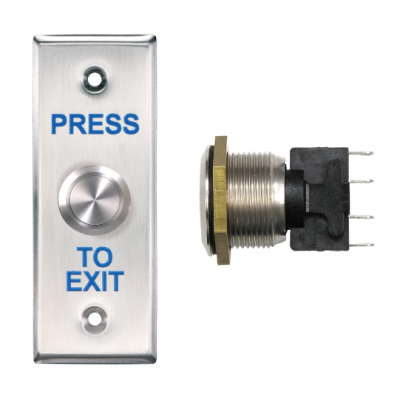

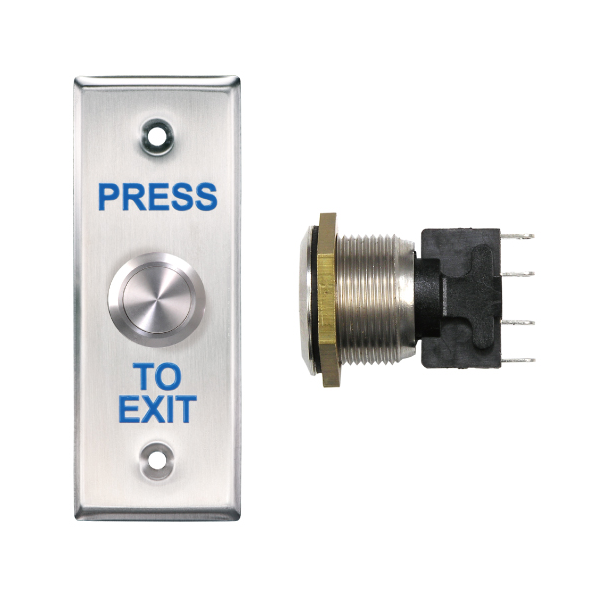

New PBT-020-4 ROUND PUSH BUTTON SLIM/MULLION STAINLESS STEEL PRESS TO EXIT DPDT MOMENTARY 115Hx43Wx32D (MM) SILVER View larger

PBT-020-4 ROUND PUSH BUTTON SLIM/MULLION STAINLESS STEEL PRESS TO EXIT DPDT MOMENTARY 115Hx43Wx32D (MM) SILVER

GIAPBT-020-4

PBT-020-4

New product

GIAPBT-020-4 Round Push Button Slim Mullion Stainless Steel DPDT Momentary 5A 125VAC - Single

The GIAPBT-020-4 is a high-quality narrow-stile request-to-exit push button designed for access-controlled doors and compact mullions. Measuring a 115 x 43 mm faceplate with an optional 115 x 43 x 32 mm surface back box, it features a stainless steel plate and a round momentary actuator to ensure robust feel vandal resistance and dependable switching.

Ideal for egress stations automatic door operators and reception release points, it complies with CE and RoHS and offers DPDT contacts rated 5 A at 125 VAC with cables included for quick wiring making it suitable for high-traffic commercial education and public environments.

Key Features

  • Momentary DPDT contacts 5 A 125 VAC for reliable REX and door trigger control
  • Stainless steel faceplate provides durability and a clean silver finish
  • Slim 115 x 43 mm mullion form with round actuator fits tight door frames for easy activation
  • CE and RoHS compliant design supports code aligned installations
  • Cables included with optional SMB-040 surface back box for fast retrofit single unit installs
  • COLOR SILVER
  • PRODUCT TYPE REX BUTTON
