> >>ROSSLARE EX-0700 ILLUMINATED PIEZOELECTRIC EXIT BUTTON IP65 DPDT MOMENTARY 12/24V AC/DC RED/GREEN LED SILVER 1
New ROSSLARE EX-0700 ILLUMINATED PIEZOELECTRIC EXIT BUTTON IP65 DPDT MOMENTARY 12/24V AC/DC RED/GREEN LED SILVER 1 View larger

ROSSLARE

ROSSLARE EX-0700 ILLUMINATED PIEZOELECTRIC EXIT BUTTON IP65 DPDT MOMENTARY 12/24V AC/DC RED/GREEN LED SILVER 1

ROSEX-0700

EX-0700

New product

ROSEX-0700 Rosslare EX-0700 Illuminated Piezoelectric Exit Button IP65 12-24V ACDC - 114x70x32mm Single

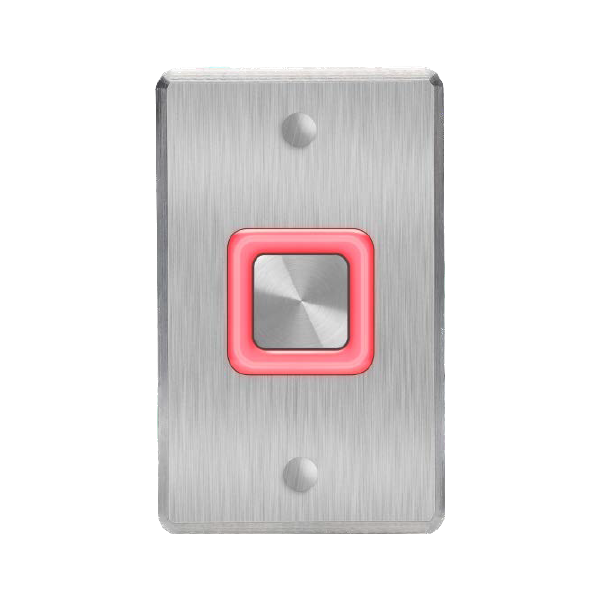

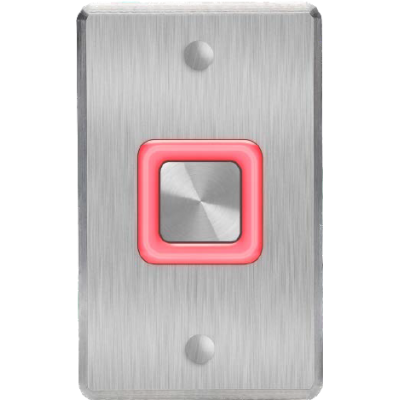

The ROSEX-0700 is a high-quality illuminated piezoelectric exit button designed for secure door release and industrial control panels. Measuring 114 x 70 x 32 mm, it features a stainless steel faceplate with solid-state piezo technology, IP65 weather sealing, and dual Form C relay outputs to ensure reliable, non-sparking performance in harsh indoor or outdoor environments.

Ideal for access control, heavy machinery panels, and high-traffic commercial doors, it complies with RoHS and ISO 9001 manufacturing standards and offers jumper-selectable red or green LED, built-in buzzer, and selectable pulse or toggle operation, making it suitable for demanding sites such as refineries, military facilities, and public buildings.

Key Features

  • 12–24 VAC/VDC operation with two isolated Form C relay outputs and 1–60 s adjustable timer for precise control
  • Stainless steel non-sparking non-magnetic corrosion-resistant construction for long service life
  • Single-gang flush mount with illuminated status indication accidental activation hindrance and built-in buzzer
  • IP65 rated for indoor or outdoor use; wide temperature range −35°C to 66°C
  • Supplied as a single no-text EX-0700 unit for access control and equipment panels
  • COLOR SILVER
  • PRODUCT TYPE EXIT BUTTON
