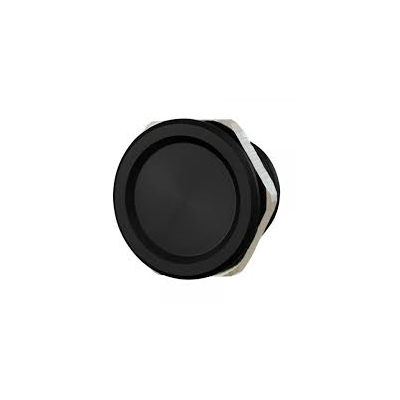

> >>ROSSLARE PX-13B PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL BLACK 19.5Hx29.5D (MM)
New ROSSLARE PX-13B PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL BLACK 19.5Hx29.5D (MM) View larger

ROSSLARE

ROSSLARE PX-13B PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL BLACK 19.5Hx29.5D (MM)

ROSPX-13B

PX-13B

New product

ROSPX-13B Rosslare PX-13B Piezo Switch IP68 NO SPST Momentary 22mm Panel Black - 19.5H x 29.5D mm

The ROSPX-13B is a high-quality piezoelectric momentary switch designed for rugged indoor and outdoor activation points, request to exit inputs, and industrial control panels. Measuring 19.5 x 29.5 mm with a 22 mm threaded mount, it features AL6061 Type II anodized aluminum and a solid-state no moving parts design to ensure long life, vandal resistance, and reliable performance in harsh environments.

Ideal for access control doors, kiosks, transportation hubs, and public interfaces, it complies with RoHS and is CE marked and offers IP68 waterproof protection, wide 5–12 VDC switching support, and non-polar two-wire connection for quick, secure installation in commercial and industrial sites.

Key Features

  • IP68 sealed NO SPST momentary switch for reliable actuation in wet dusty conditions
  • AL6061 anodized aluminum body resists corrosion and wear
  • Solid-state piezo technology with >1 million cycles operable with gloves or overlays
  • RoHS compliant and CE marked for quality and safety
  • 22 mm panel mount black variant with 280 mm 24 AWG leads for easy integration
  • COLOR BLACK
  • PRODUCT TYPE EXIT BUTTON
