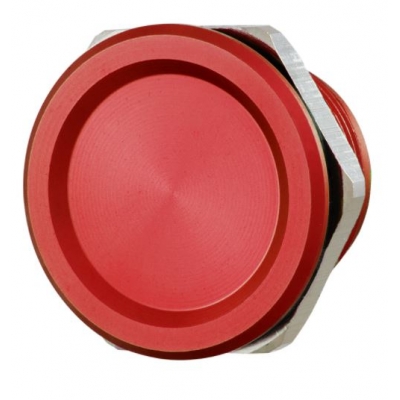

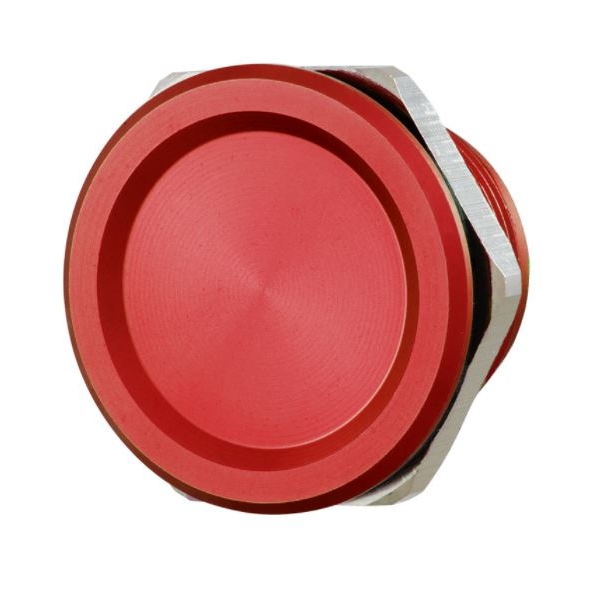

> >>ROSSLARE PX-13R PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL RED 19.5Hx29.5D (MM)
New ROSSLARE PX-13R PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL RED 19.5Hx29.5D (MM) View larger

ROSSLARE

ROSSLARE PX-13R PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL RED 19.5Hx29.5D (MM)

ROSPX-13R

PX-13R

New product

ROSPX-13R Rosslare PX-13R Piezo Switch IP68 NO SPST Momentary 22mm Panel - Red

The ROSPX-13R is a high-quality piezoelectric momentary switch designed for rugged access control and industrial interfaces. Measuring 19.5 mm height x 29.5 mm diameter with a standard 22 mm panel thread, it features AL6061 aluminum with Type II anodization and a fully potted solid-state design to ensure waterproof, vandal-resistant performance.

Ideal for request-to-exit doors, outdoor control stations, machinery panels, and kiosks, it complies with IP68 ingress protection and RoHS and offers no-polarity 2-wire hookup with 0–30 V AC/DC switching and 1 A max load, making it suitable for harsh indoor or outdoor environments.

Key Features

  • Dry-contact N.O. SPST momentary output 0–30 V AC/DC up to 1 A for reliable triggering
  • AL6061 anodized aluminum body resists corrosion and tampering for long service life
  • Solid-state piezo technology with >50 ms impulse time operates with gloves and has no moving parts
  • IP68 waterproof rating and RoHS compliance with operating range −40°C to 70°C and 20 million-cycle lifespan
  • 2 x 24 AWG 280 mm leads and 22 mm panel mount thread for button-only installations on REX and automation panels
  • COLOR RED
  • PRODUCT TYPE EXIT BUTTON
