> >>ROSSLARE PX-23N PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL DUAL LED RED/GREEN 5-12VDC SILVER 19.5Hx29.5D (
New ROSSLARE PX-23N PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL DUAL LED RED/GREEN 5-12VDC SILVER 19.5Hx29.5D ( View larger

ROSSLARE

ROSSLARE PX-23N PIEZO SWITCH IP68 NO SPST MOMENTARY 22MM PANEL DUAL LED RED/GREEN 5-12VDC SILVER 19.5Hx29.5D (

ROSPX-23N

PX-23N

New product

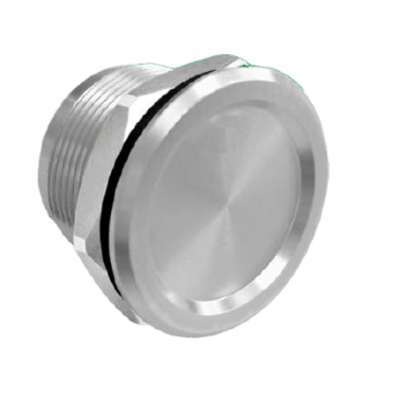

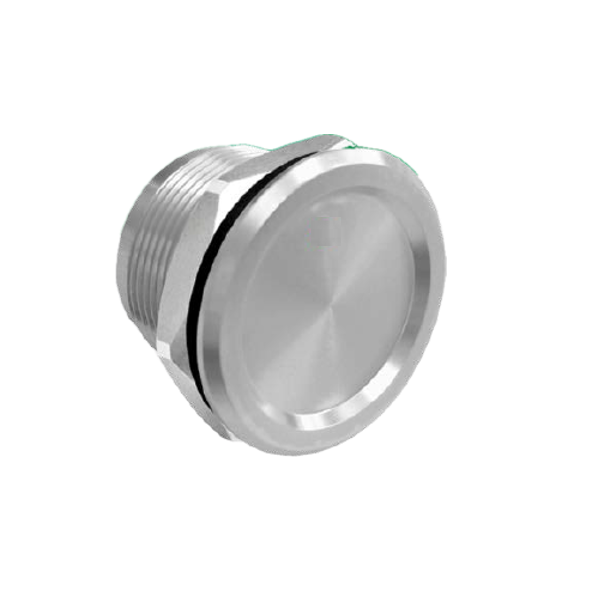

ROSPX-23N Rosslare PX-23N Piezo Switch IP68 NO SPST Momentary 22mm Panel Dual LED Red Green 5-12VDC Button Only Silver - 19.5Hx29.5D mm

The ROSPX-23N is a high-quality piezoelectric momentary switch designed for access control, elevator panels, and industrial operator interfaces. Measuring 19.5 mm height x 29.5 mm diameter with a 22 mm panel thread, it features AL6061 aluminum with Type II anodization and a sealed, solid-state construction to ensure waterproof, anti-vandal performance and ultra-long life.

Ideal for indoor or outdoor request-to-exit stations and machinery controls, it complies with IP68 ingress protection and RoHS and offers bi-color LED feedback (red/green) on 5–12 VDC with simple 2-wire N.O. switching, making it suitable for harsh, wet, dusty, or high-traffic environments.

Key Features

  • N.O. SPST dry contact with >50 ms impulse time for reliable triggering in control systems
  • Anodized aluminum body resists corrosion, sparks, and tampering for long service life
  • Bi-color LED indication with dedicated leads for red/green status and no-polarity switch wiring
  • IP68 waterproof rating, −40°C to 70°C operation, and RoHS compliance
  • Button-only 22 mm panel mount with 2 x 24 AWG 280 mm leads for quick integration
  • COLOR SILVER
  • PRODUCT TYPE EXIT BUTTON
