> >>ROSSLARE EX-07E0 PUSH TO EXIT BUTTON IP65 SPDT 12-24VDC RED/GREEN LED MOMENTARY STAINLESS STEEL 114Hx70Wx32D (
New ROSSLARE EX-07E0 PUSH TO EXIT BUTTON IP65 SPDT 12-24VDC RED/GREEN LED MOMENTARY STAINLESS STEEL 114Hx70Wx32D ( View larger

ROSSLARE

ROSSLARE EX-07E0 PUSH TO EXIT BUTTON IP65 SPDT 12-24VDC RED/GREEN LED MOMENTARY STAINLESS STEEL 114Hx70Wx32D (

ROSEX-07E0

EX-07E0

New product

ROSEX-07E0 Rosslare EX-07E0 Push to Exit Button IP65 12-24VDC - 114x70x32mm Single

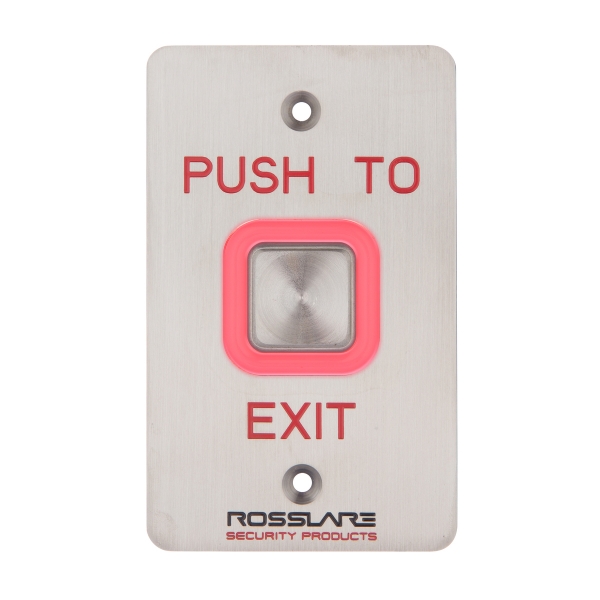

The ROSEX-07E0 is a high-quality illuminated piezoelectric push to exit switch designed for secure door release in access control systems. Measuring 114 x 70 x 32 mm, it features a stainless steel faceplate with a solid-state piezo button and a non-sparking vandal-resistant design to ensure ultra-reliable performance and a lifespan of over 1 billion activations.

Ideal for high-traffic commercial entries and industrial sites, it complies with IP65 CE and RoHS and offers selectable red or green LED indication, built-in buzzer, and timed pulse or toggle operation for flexible control, making it suitable for indoor or outdoor harsh environments and single-gang US mounting.

Key Features

  • 12–24 VAC/VDC operation with one dry contact relay providing two full Form C outputs up to 4 A for precise door control
  • Stainless steel non-magnetic non-sparking corrosion-resistant construction for long service life
  • Single-gang flush mount with illuminated status ring accidental activation hindrance and built-in buzzer
  • IP65 rated −35°C to 66°C wide temperature range; CE and RoHS compliant
  • EX-07E0 Push To Exit text version supplied as a single unit for access control panels and door release
  • COLOR STAINLESS STEEL
  • PRODUCT TYPE EXIT BUTTON
