> >GALLAGHER C500327 SMB RS485 HBUS 6 DOOR EXPANSION KIT 16X DEFAULT 16X OUTPUTS IK07 BLACK 9-16VDC, 8-PORT HUB & 16IN/16OUT BOARD

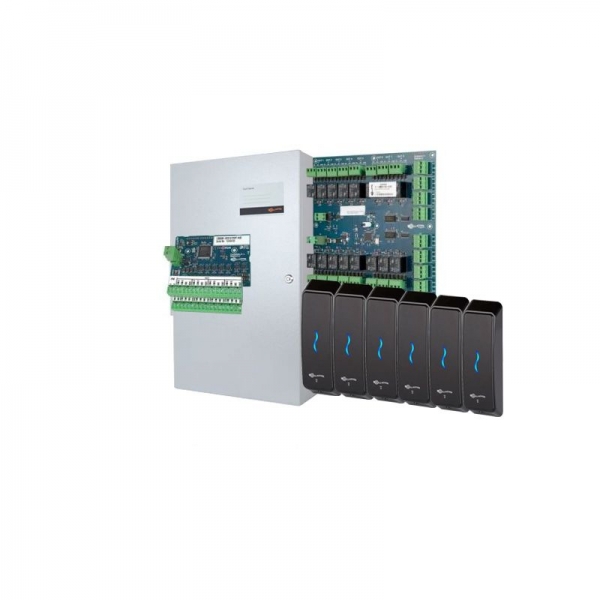

GALLAGHER C500327 SMB 6-DR EXP KIT 6x T15 RDR 1x HBUS 8PORT 1x SMB HBUS MOD 1x DUAL ENC 1x P/S 1x MNT PLATE View larger

GALLAGHER

GALLAGHER C500327 SMB RS485 HBUS 6 DOOR EXPANSION KIT 16X DEFAULT 16X OUTPUTS IK07 BLACK 9-16VDC, 8-PORT HUB & 16IN/16OUT BOARD

GALC500327

C500327

New product

Please Note: Gallagher products must be installed by a Gallagher-certified installer. A subscription may also be required.

C500327 Gallagher SMB Six-Door Expansion Kit

The C500327 Gallagher SMB Six-Door Expansion Kit provides a structured way to extend Gallagher SMB access control across six doors. Its T15 reader platform supports MIFARE DESFire EV1 and EV2, MIFARE Plus, MIFARE Classic, 125 kHz proximity credentials and Gallagher Mobile Connect via Bluetooth, providing flexible credential options within the SMB environment.

Within an SMB Controller 6000 installation, high-speed RS485 HBUS communication supports responsive access decisions, field-device connectivity and software updates. The slim T15 readers suit mullion mounting and combine secure reader communications with IP68 environmental protection, helping extend credential access to exposed or space-constrained entry points.

Key Features

  • Provides a defined path for extending Gallagher SMB access control across six doors
  • Accommodates smart-card, proximity and mobile credential technologies
  • Helps protect communications between readers and the wider access system
  • Supports practical deployment on mullions, metal surfaces and challenging locations
  • Simplifies ongoing oversight through upgradeable reader software and heartbeat monitoring
  • IP Rating IP68
  • Warranty 60 Months
  • COLOR BLACK
  • PRODUCT TYPE 6 DOOR EXPANSION KIT
  • Brand GALLAGHER
  • Series SMB
  • Input 16x DEFAULT
  • Output 16x OUTPUTS
  • Power 9-16VDC
  • Authentication Type CARD / MOBILE CREDENTIAL
  • Card Type MIFARE DESFIRE EV1/EV2
  • Recognition Distance 75MM
  • IK Rating IK07
  • Connection RS485 HBUS
  • Included Modules 1x HBUS 8-PORT HUB; 1x HBUS 16IN 16OUT BOARD
