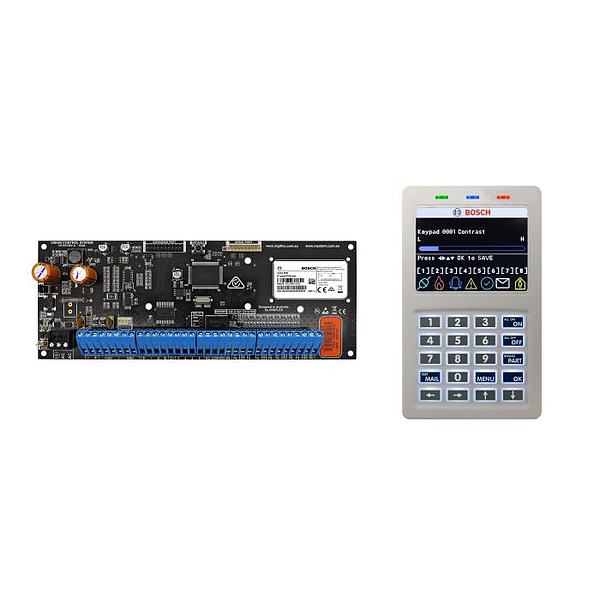

Solution 6000 IP PCB + CP737B Codepad

Solution 6000 IP PCB + CP737B Codepad

The Solution 6000-IP Access and Intrusion alarm control panel offers an extensive feature list including integrated proximity, numerous wire free options, high speed windows programming software and the simplest user/installer interface on the market today.

Features

• 16 onboard zones (expandable to 144 wired or wireless), partitionable to 8 areas with 990 PIN, token, keyfob and Fingerprint users
• Integrated access control for up to 16 doors
• MiFare Smart Card keypads, weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
• 5 onboard outputs (expandable to 37)
• IP Reporting via CSV-IP, Connetix, SIA, MyAlarm

The CP737B Graphic Keypad provides everything you would expect from a State of the Art security keypad and much more. The décor friendly white plastic housing blends with the most discerning of interior designs. Color coded, illuminated rubber keys allow for easy identification and operation in all ambient light conditions and provide a positive feel to the user.

Red and Green indicators provide easy identification of Armed and Disarmed areas, and a Blue indicator shows door status when access features are in use. The in built sounder provides audible feedback during system operation and emits a siren sound during an alarm providing early warning. The volume level can be individually programmable for each keypad connected to the system.

The 3.5” graphic color display on the CP737B incorporates the latest pixel technology, which graphically identifies all system conditions at a glance. Variable font sizes and colors are used depending on the situation, with essential information being displayed in large bold font while four or more lines of text can be displayed when additional information is available.

The large text display lets users clearly identify the current operating mode and enhances feedback for simple, trouble free operation. All programmable system features and options are displayed in full text on the keypad, allowing many parameters to be programmed and configured without referring to the manual.

Features

• 3.5” Color graphical display with LED backlight
• 40bit MiFare smart card reader built in
• 802.11 b/g/n Wi-Fi connectivity built in
• Alpha numeric text prompting/programming
• Customizable Installer banner display
