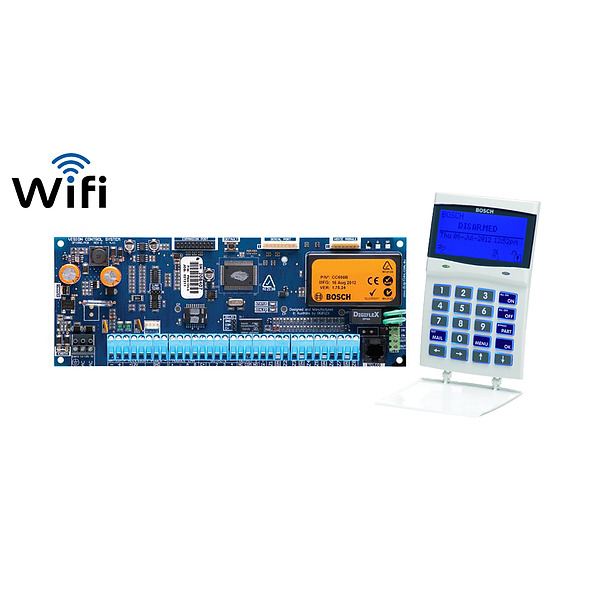

Solution 6000 PCB + CP737B Codepad

The Solution 6000 Access and Intrusion alarm panel offers an extensive feature list including integrated proximity, numerous wire free options, high speed windows programming software and the simplest user / installer interface on the market today.

Features

• 16 on-board zones (expandable to 144 wired or wireless), partitionable to 8 areas with 256 PIN, token, keyfob and fingerprint users
• Integrated access control for up to 16 doors
• Proximity key pads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
• 5 on-board outputs (expandable to 37)
• GSM/GPRS and Ethernet options

The new 3.5” Color graphical display with LED backlight & Wifi enabled keypads for the Solution 6000 provide additional options for panel communications. The new keypads sit on the wired RS485 panel LAN as with other keypads, but also acts as a connection device, joining networks around the area. Just like with the wired network module for the Solution 6000, a WiFi enabled keypad allows the panel to use such features as IP reporting, upload/download via IP, and Site Manager software to control the panel.

Installation can be done close to wireless routes or access points due to flexibility of a keypad, allowing the panel's location to be securely stored.

Even when using the Wifi enabled keypads, the panel itself can still be fitted with a standard communications module such the CM743B GSM Module - giving the panel an additional communications path and enhancing the overall security of the system.

Features

• Provides additional options for panel communications
• Acts as a WiFi connection device and antenna for the panel
• Allows the panel to use such features as IP reporting, upload/download via IP, and Site Manager software to control the panel
• Flexibility of the keypad allows for easy installation close to wireless routes or access points, enabling the panel itself to be securely stored
