> >>PATRIOT W-AC24-8A 24VAC 8.2A WALL MOUNTED POWER SUPPLY 16X FUSED OUTPUTS 1A LED DISPLAY 92Hx235Wx362D (MM)
New PATRIOT W-AC24-8A 24VAC 8.2A WALL MOUNTED POWER SUPPLY 16X FUSED OUTPUTS 1A LED DISPLAY 92Hx235Wx362D (MM) View larger

PATRIOT

PATRIOT W-AC24-8A 24VAC 8.2A WALL MOUNTED POWER SUPPLY 16X FUSED OUTPUTS 1A LED DISPLAY 92Hx235Wx362D (MM)

PSSW-AC24-8A

W-AC24-8A

New product

PSSW-AC24-8A Patriot 24VAC Wall Mounted Power Supply 16x1A Fused Outputs 92x235x362mm - 8.2A LED Display

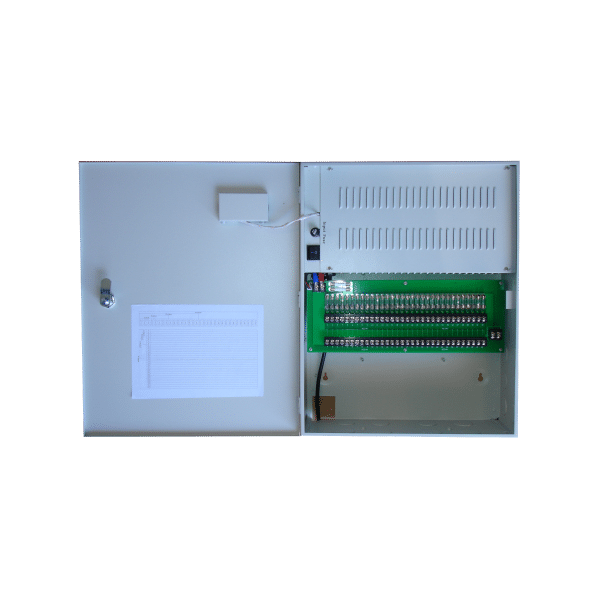

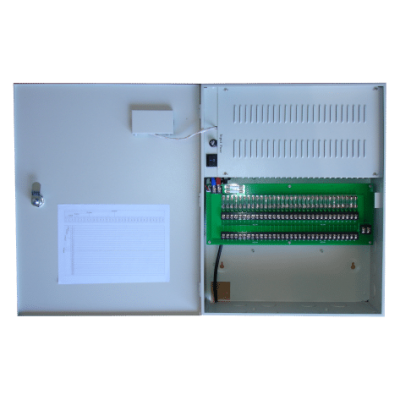

The PSSW-AC24-8A is a high-quality AC distribution power supply designed for CCTV cameras access control and security systems. Measuring 92H x 235W x 362D mm it features a robust wall mounted steel enclosure with a lockable front door an LED voltage display and an internal GPO recess to ensure fast installation clear status visibility and dependable 24VAC delivery.

Ideal for multi camera NVR DVR and door controller installations it complies with EN55022 Class B and C Tick N12754 EMC requirements and offers 16 individually fused 1A outputs with short circuit overload and over voltage protection making it suitable for commercial institutional and light industrial indoor environments.

Key Features

  • 24VAC 8.2A total with 16 x 1A fused outputs and LED per channel for reliable distribution and rapid fault finding
  • Durable lockable steel cabinet with free air convection cooling for long service life
  • LED voltage display battery backup provision and internal GPO recess streamline installation and maintenance
  • Standards compliance EN55022 Class B and C Tick N12754 for low emissions and EMC
  • Wall mount enclosure sized 92 x 235 x 362 mm suits security control rooms comms cupboards and utility areas
  • COLOR BEIGE
  • PRODUCT TYPE POWER SUPPLY
