> >>PATRIOT W-DC12-12A 12VDC 12.5A 16X FUSED OUTPUTS WALL MOUNTED POWER SUPPLY BATTERY BACKUP MAINS FAIL/LOW BATT

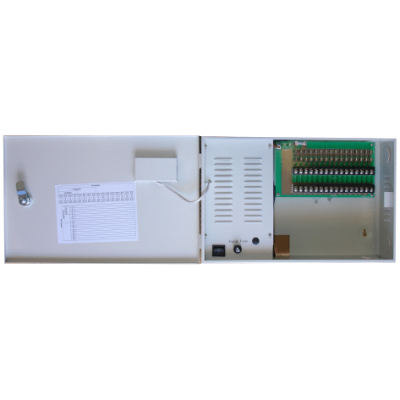

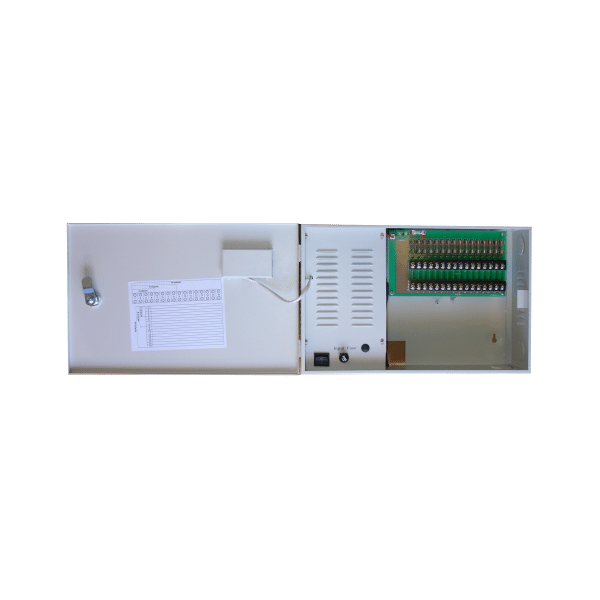

New PATRIOT W-DC12-12A 12VDC 12.5A 16X FUSED OUTPUTS WALL MOUNTED POWER SUPPLY BATTERY BACKUP MAINS FAIL/LOW BATT View larger

PATRIOT

PATRIOT W-DC12-12A 12VDC 12.5A 16X FUSED OUTPUTS WALL MOUNTED POWER SUPPLY BATTERY BACKUP MAINS FAIL/LOW BATT

PSSW-DC12-12A

W-DC12-12A

New product

PSSW-DC12-12A PATRIOT W-DC12-12A 12VDC 12.5A Wall Mounted Power Supply - 16x Fused Outputs

The PSSW-DC12-12A is a high-quality 12V DC wall mounted power supply with battery backup designed for multi-channel security and building services distribution. Measuring 92H x 235W x 362D mm, it features a powder-coated steel lockable enclosure and individually fused outputs with LED indication to ensure reliable power delivery and rapid fault identification.

Ideal for CCTV, access control, alarms, and general low-voltage systems, it complies with UL60950-1, EN60950-1, EN55022 Class B, and EN61000-4/EN55024 standards and offers mains fail and low-battery contacts plus short-circuit and overload protection, making it suitable for commercial, industrial, and critical infrastructure environments.

Key Features

  • 12VDC 12.5A total with 16 fused outputs for clean, distributed power
  • Robust powder-coated steel cabinet with lockable front door
  • LED voltage display and per-output LED status for quick diagnostics
  • Safety and EMC compliance UL60950-1 EN60950-1 EN55022 Class B EN61000-4 EN55024
  • Wall-mounted enclosure with battery backup and mains fail/low-battery contacts
  • COLOR BEIGE
  • PRODUCT TYPE POWER SUPPLY
