> >>PATRIOT TIM 01 DIGITAL TIMER BOARD 8 PROGRAMMABLE FUNCTIONS SPDT RELAY 1S-99D 12VDC 3A
New PATRIOT TIM 01 DIGITAL TIMER BOARD 8 PROGRAMMABLE FUNCTIONS SPDT RELAY 1S-99D 12VDC 3A View larger

PATRIOT

PATRIOT TIM 01 DIGITAL TIMER BOARD 8 PROGRAMMABLE FUNCTIONS SPDT RELAY 1S-99D 12VDC 3A

PSSTIM01

TIM 01

New product

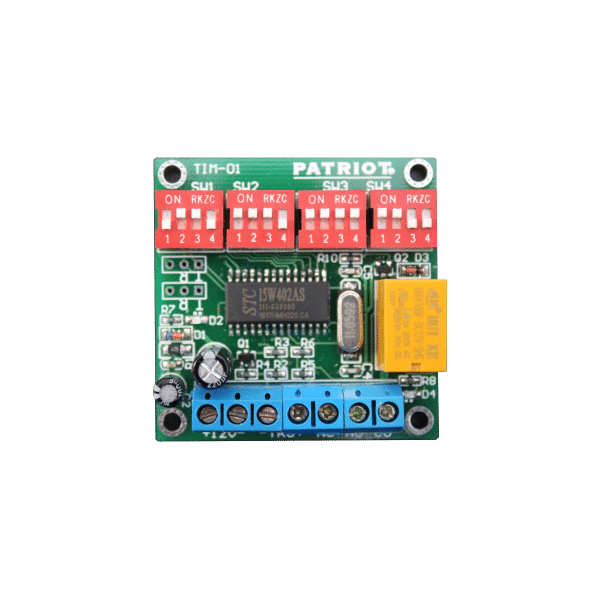

PSSTIM01 PATRIOT TIM 01 Digital Timer Board 8 Function SPDT 1s-99d - 12VDC 3A 50x50mm Single Board

The PSSTIM01 is a high-quality digital timer board designed for access control security automation and general low voltage control. Measuring 50 x 50 mm it features four DIP switch banks for mode timing tens and ones plus LED indicators and an SPDT relay to ensure easy programming clear status feedback and dependable switching.

Ideal for door control DOTL alarms gates lighting and timed triggers it offers a wide 1 second to 99 day range selectable fail safe or fail secure behavior and 12 to 13.8VDC operation making it suitable for commercial industrial and building services environments.

Key Features

  • Eight programmable modes including one shot retriggerable strobe debounce stand off timer and programmed pulse with 1s to 99d intervals
  • SPDT relay rated 3A at 250V AC or 30V DC for versatile load control
  • Simple DIP switch setup with dedicated mode and timing banks plus power and relay LEDs
  • Low current design 15mA quiescent 35mA operating at 12VDC
  • Supplied as a compact single PCB for panel mounting and field integration
  • PRODUCT TYPE RELAY BOARD
