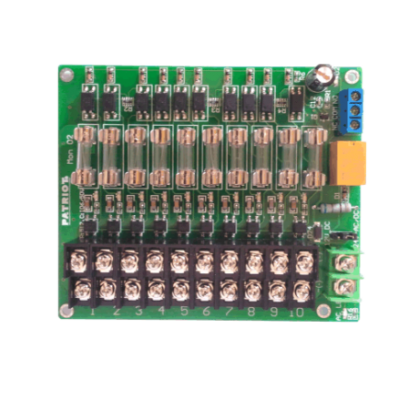

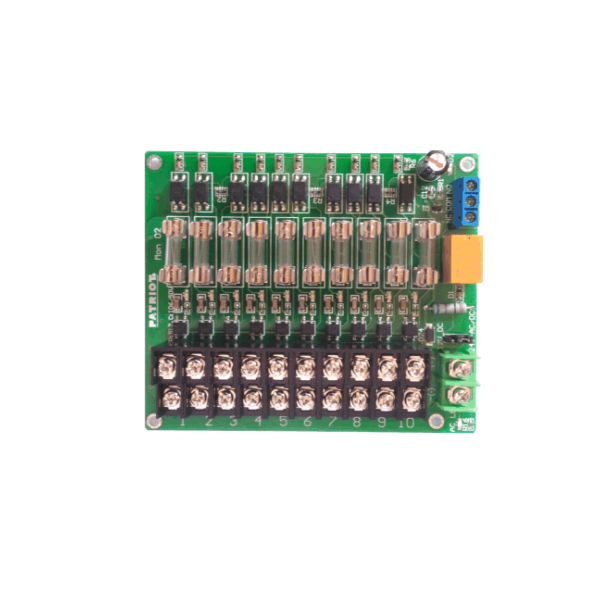

> >>PATRIOT MON 02 10X FUSED MONITORED POWER DISTRIBUTION BOARD 12-24V AC/DC 10A MAX COMMON FAULT RELAY
New PATRIOT MON 02 10X FUSED MONITORED POWER DISTRIBUTION BOARD 12-24V AC/DC 10A MAX COMMON FAULT RELAY View larger

PATRIOT

PATRIOT MON 02 10X FUSED MONITORED POWER DISTRIBUTION BOARD 12-24V AC/DC 10A MAX COMMON FAULT RELAY

PSSMON02

MON 02

New product

PSSMON02 PATRIOT Mon 02 Monitored Power Distribution Board 10 Output - 12-24V AC DC 10A Max 110x93mm

The PSSMON02 is a high-quality monitored power distribution board designed for low voltage security CCTV access control and alarm applications. Measuring 110 x 93 mm it features state of the art SMD construction and 10 individually fused circuits with green status LEDs to ensure clear fault indication reliable protection and streamlined servicing.

Ideal for multi device installations and control cabinets it supports 12 to 24V AC or DC operation via a selectable jumper and offers a common fault relay with NC COM NO terminals for systemwide alarms making it suitable for professional commercial and industrial environments.

Key Features

  • 10 x fused and monitored outputs 1A per circuit with green OK LEDs total load 10A max
  • Compact SMD build 110 x 93 mm for robust low voltage distribution
  • Common fault LED and relay output NC COM NO for remote alarm signaling
  • Wide input range 12 to 24V AC or DC with 24VAC operation LED relay rated 3A at 250V AC or 30V DC
  • Supplied as a single board for CCTV access control and alarm panel power management
  • PRODUCT TYPE PCB BOARD
