> >>PATRIOT ZP-DC-16WAY-PCB 12VDC 16X FUSED OUTPUT POWER DISTRIBUTION PCB 1.2A BATTERY CHARGER 10–16VDC LOW BATTER
New PATRIOT ZP-DC-16WAY-PCB 12VDC 16X FUSED OUTPUT POWER DISTRIBUTION PCB 1.2A BATTERY CHARGER 10–16VDC LOW BATTER View larger

PATRIOT

PATRIOT ZP-DC-16WAY-PCB 12VDC 16X FUSED OUTPUT POWER DISTRIBUTION PCB 1.2A BATTERY CHARGER 10–16VDC LOW BATTER

PSSZP-DC-16WAY-PCB

ZP-DC-16WAY-PCB

New product

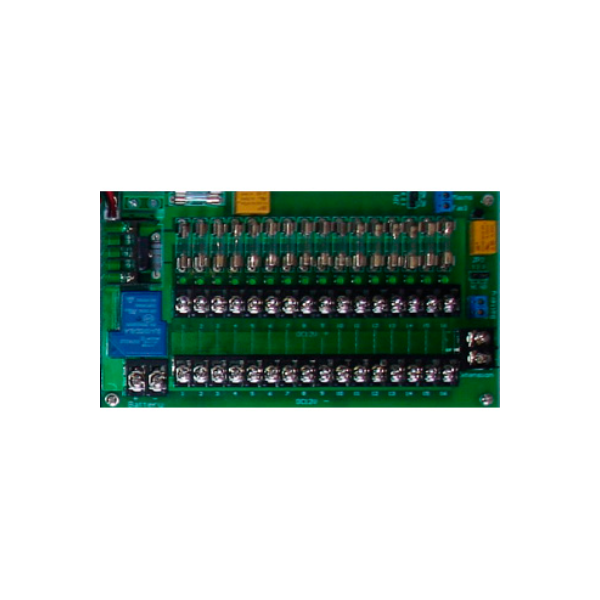

PSSZP-DC-16WAY-PCB Patriot Power Distribution Board with Battery Charger 12VDC 16 Way Fused Outputs - 190x106x31mm PCB

The PSSZP-DC-16WAY-PCB is a high-quality DC power distribution board with integrated 1.2A linear battery charger designed for centralised 12V device power in security CCTV and access control systems. Measuring 190 x 106 x 31mm it features a robust fused-output PCB with reverse-polarity battery protection and individual circuit indication to ensure safe reliable operation and rapid fault diagnosis.

Ideal for multi-camera and door hardware loads it complies with typical low-voltage security panel wiring practices and offers low-battery and supply-fail relay contacts for remote monitoring making it suitable for commercial industrial and infrastructure control cabinets.

Key Features

  • Sixteen fused 12V outputs up to 16A total for clean power distribution to multiple devices
  • 1.2A linear battery charger with reverse-polarity protection for dependable standby power
  • Individual circuit LEDs and labelled terminal blocks simplify installation and service
  • Low-battery and supply-fail relay contacts rated 1A 30VDC for system supervision
  • Compact PCB format 190 x 106 x 31mm fits easily into security and electrical enclosures
  • PRODUCT TYPE PCB BOARD
