> >>PATRIOT WB-DC12-12A 12VDC 12.5A WALL MOUNT POWER SUPPLY 16X OUTPUTS MAINS FAIL/LOW BATT 1X 12V/7AH 92Hx235Wx36
New PATRIOT WB-DC12-12A 12VDC 12.5A WALL MOUNT POWER SUPPLY 16X OUTPUTS MAINS FAIL/LOW BATT 1X 12V/7AH 92Hx235Wx36 View larger

PATRIOT

PATRIOT WB-DC12-12A 12VDC 12.5A WALL MOUNT POWER SUPPLY 16X OUTPUTS MAINS FAIL/LOW BATT 1X 12V/7AH 92Hx235Wx36

PSSWB-DC12-12A

WB-DC12-12A

New product

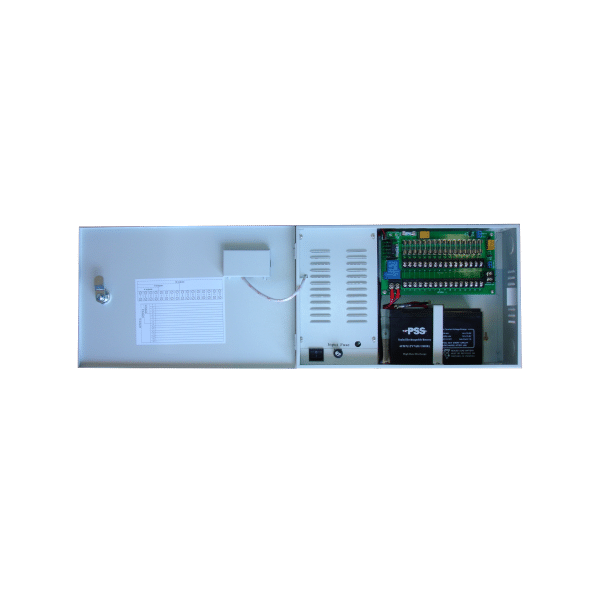

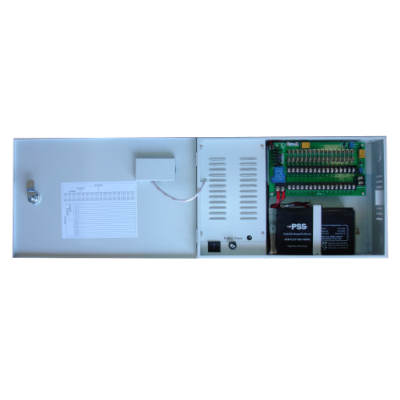

PSSWB-DC12-12A Patriot Wall Mount Power Supply 12VDC 12.5A 16 Outputs - 92Hx235Wx362D mm

The PSSWB-DC12-12A is a high-quality wall mounted 12V DC power supply and distribution unit designed for security, surveillance, and access control systems. Measuring 92Hx235Wx362D mm, it features a lockable steel enclosure, LED voltage display, and individually fused outputs to ensure reliable 24/7 performance with rapid fault identification.

Ideal for multi-camera CCTV, alarm panels, and door controllers, it complies with UL60950-1 TUV EN60950-1 EN55022 Class B EN61000-3-2 -3 and EN61000-4 series immunity standards and offers mains fail and low battery relay contacts for remote monitoring, making it suitable for commercial and light industrial environments.

Key Features

  • 12VDC 12.5A supply with 16 x 1A fused outputs for clean, distributed power
  • 1 x 12V 7Ah sealed lead acid battery backup with 1A charger for ride-through
  • LED voltage display plus 16 per-output status LEDs and internal GPO recess for easy service
  • Wide 90-264VAC input with short circuit overload and over voltage protection and free air convection cooling
  • Supplied in a lockable wall mount enclosure for secure professional installations
  • COLOR BEIGE
  • PRODUCT TYPE POWER SUPPLY
