> >>PATRIOT W-DC12-24A 12VDC 25A WALL MOUNTED POWER SUPPLY 32X FUSED OUTPUTS MAINS FAIL CONTACTS IEC INPUT 2.5A 12
New PATRIOT W-DC12-24A 12VDC 25A WALL MOUNTED POWER SUPPLY 32X FUSED OUTPUTS MAINS FAIL CONTACTS IEC INPUT 2.5A 12 View larger

PATRIOT

PATRIOT W-DC12-24A 12VDC 25A WALL MOUNTED POWER SUPPLY 32X FUSED OUTPUTS MAINS FAIL CONTACTS IEC INPUT 2.5A 12

PSSW-DC12-24A

W-DC12-24A

New product

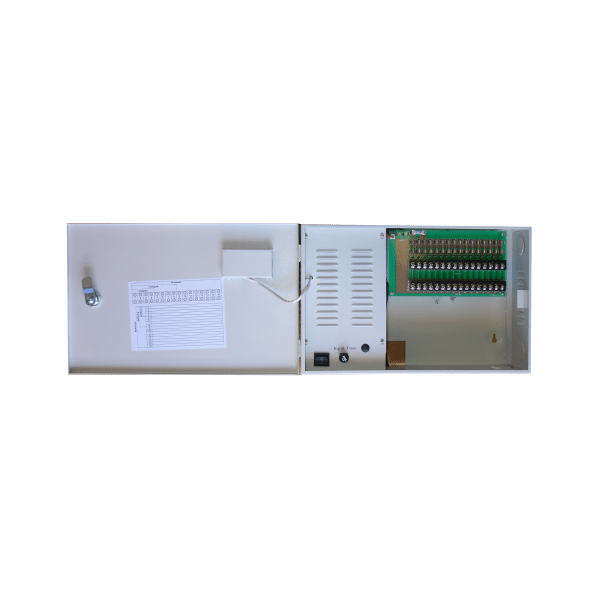

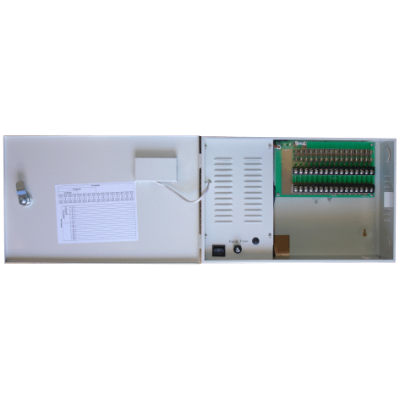

PSSW-DC12-24A Patriot 12VDC Wall Mounted Power Supply 32x Fused Outputs - 120Hx345Wx435D mm

The PSSW-DC12-24A is a high-quality 12VDC wall-mounted power supply designed for centralised distribution in CCTV, access control, alarms, and building services. Measuring 120H x 345W x 435D mm, it features a lockable steel enclosure with IEC mains input, LED voltage display, and a 32-way fused output board to ensure reliable multi-circuit power with rapid fault identification.

Ideal for commercial and industrial security installations, it provides 25A total capacity with battery-backup readiness, mains-fail and low-battery relay contacts, and short-circuit/overload protection, making it suitable for mission-critical environments that demand tidy wiring, safety, and uptime.

Key Features

  • 12VDC 25A supply with 32 x 1A individually fused outputs and per-channel LED status
  • Robust lockable powder-coated steel cabinet with internal GPO recess
  • Front-panel LED voltage display plus battery-backup support with alarm contacts
  • EMC and safety compliance: EN55022 CISPR22 Class B, EN61000-3-2/-3, EN61000-4 suite, UL60950-1 and EN60950-1 approvals
  • Supplied with 32-way terminal PCB for fast, organised multi-load installation
  • COLOR BEIGE
  • PRODUCT TYPE POWER SUPPLY
