> >>PATRIOT W-AC24-4A 24VAC 4.5A WALL MOUNTED POWER SUPPLY 9X 1A FUSED OUTPUTS LED VOLTAGE DISPLAY 92Hx235Wx362D (
New PATRIOT W-AC24-4A 24VAC 4.5A WALL MOUNTED POWER SUPPLY 9X 1A FUSED OUTPUTS LED VOLTAGE DISPLAY 92Hx235Wx362D ( View larger

PATRIOT

PATRIOT W-AC24-4A 24VAC 4.5A WALL MOUNTED POWER SUPPLY 9X 1A FUSED OUTPUTS LED VOLTAGE DISPLAY 92Hx235Wx362D (

PSSW-AC24-4A

W-AC24-4A

New product

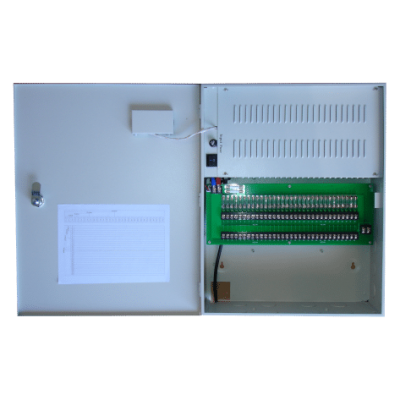

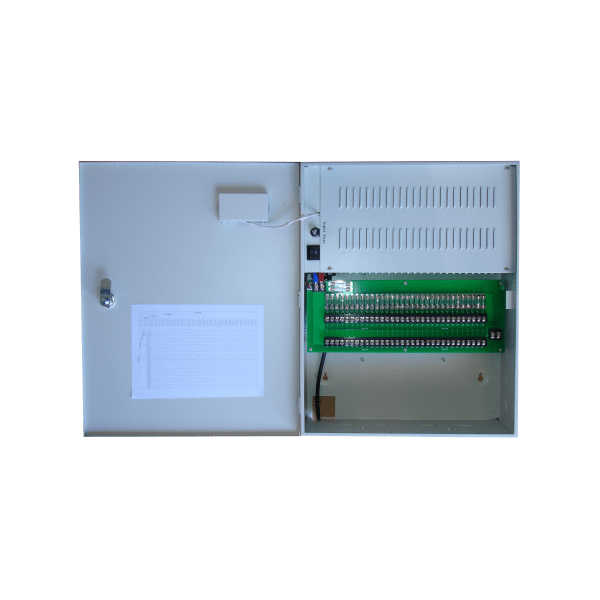

PSSW-AC24-4A Patriot 24VAC Wall Mounted Power Supply 9x1A Fused Outputs 92x235x362mm - 4.5A LED Display

The PSSW-AC24-4A is a high-quality AC distribution power supply designed for CCTV access control and security systems. Measuring 92H x 235W x 362D mm it features a robust wall mounted steel enclosure with a lockable front door LED voltage display and an internal GPO recess to ensure easy installation quick diagnostics and dependable 24VAC delivery.

Ideal for multi camera DVR NVR and door controller installations it complies with EN55022 Class B and C Tick N12754 EMC requirements and offers individually fused outputs plus short circuit and overload protection making it suitable for commercial institutional and light industrial indoor environments.

Key Features

  • 24VAC 4.5A supply with 9 x 1A fused outputs for reliable device powering
  • Durable steel cabinet with lockable door enhances security and service life
  • Front LED voltage display and per channel indicators for rapid fault finding
  • Compliance EN55022 Class B and C Tick N12754 for low emissions
  • Wall mount enclosure with internal GPO recess and battery backup provision for streamlined installs
  • COLOR BEIGE
  • PRODUCT TYPE POWER SUPPLY
