> >>FSH FEM4300D FEM4300 SERIES ELECTRIC DOUBLE MAG LOCK NON MONITORED 280KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC

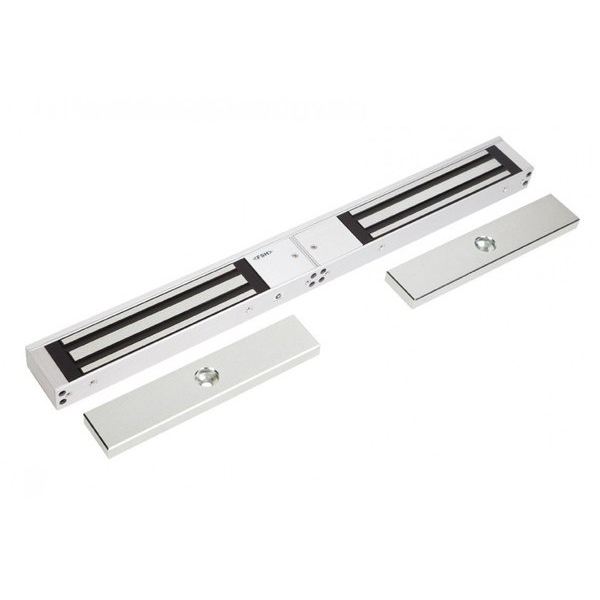

Electromagnetic Lock - Double View larger

FSH

FSH FEM4300D FEM4300 SERIES ELECTRIC DOUBLE MAG LOCK NON MONITORED 280KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC

FSHFEM4300D

FEM4300D

New product

Electromagnetic Lock - Double

More details

FEM4300D Non-Monitored Double Electromagnetic Lock - 12/24 V DC

The FSH FEM4300D is a non-monitored double electromagnetic lock for paired commercial doors. Its two locking sections operate from selectable 12 or 24 V DC power, with each single magnetic lock providing holding strength of up to 280 kg.

The 476 x 48 x 25 mm double-door magnet has an anodised aluminium finish and can be activated through PIN pads, fob readers and other access-control platforms. The FEM4300 Series is tested for up to 2 hours on fire door assemblies in accordance with AS 1905.1:2015.

Key Features

  • Double-magnet layout allows two door leaves to be secured as one controlled opening
  • No residual magnetism helps both leaves disengage cleanly when power is removed
  • Built-in MOV surge protection helps manage electrical transients within the locking circuit
  • Fixing methods support in-swinging and out-swinging door arrangements
  • Five-year mechanical and electronic warranty coverage supports long-term product ownership
  • Colour Silver
  • Compliance 2-hour fire rated
  • Dimensions (H x W x D) 477 x 48 x 25mm
  • Holding Strength Up to 280kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 476H x 48W x 25D
  • Series FEM4300 SERIES
  • Power 12 or 24VDC
  • Device Type DOUBLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored NON MONITORED
  • Lock Status Sensor (LSS) NO
  • Door Status Sensor (DSS) NO
  • Holding Force 280KG
  • Fire Rating 2 HOUR FIRE RATING
  • LED Indicator NO
