> >>GIANNI GIAGL-80FR-12-5M GL-80F SERIES ELECTRIC MAGNETIC CABINET LOCK MONITORED LOCK STATUS SENSOR 36KG HOLDING FORCE FAIL SAFE
GL-80F SERIES ELEC SINGLE MINI MAG LOCK SIL MON LSS 36KG HOLDING FORCE FAIL SAFE (PTL) SURFACE MOUNTED 12VDC View larger

GIANNI

GIANNI GIAGL-80FR-12-5M GL-80F SERIES ELECTRIC MAGNETIC CABINET LOCK MONITORED LOCK STATUS SENSOR 36KG HOLDING FORCE FAIL SAFE

GIAGL-80FR-12-5M

GIAGL-80FR-12-5M

New product

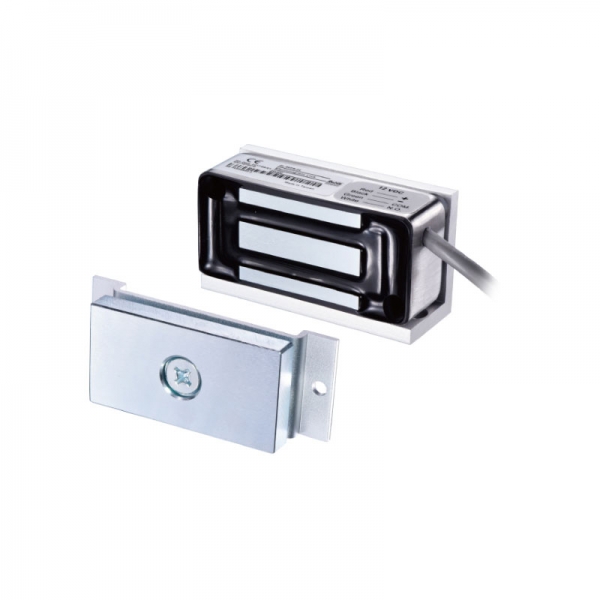

GIAGL-80FR-12-5M Gianni Mini Monitored Electromagnetic Cabinet Lock - 12 V DC

The GIAGL-80FR-12-5M is a 12 V DC monitored variant from the Gianni GL-80F series of compact electromagnetic cabinet locks. It combines fail-safe operation with bond-sensor monitoring and provides 80 lb (36 kg) of holding force for controlled access to smaller storage enclosures.

Designed for swing cabinets, drawers, lockers and safes, this mini magnetic lock can be mounted vertically or horizontally to suit different cabinet layouts. It draws 120 mA at 12 V DC and features a stainless steel finish, with an operating range of -10 to 55 degrees Celsius and 0-95% non-condensing humidity.

Key Features

  • Compact format supports installation where cabinet mounting space is restricted
  • Vertical or horizontal positioning provides flexibility across different door and drawer layouts
  • Suitable for cabinets, drawers, lockers and safes across varied asset-protection applications
  • Magnet and armature dimensions support straightforward planning within compact enclosures
  • Low 120 mA current draw assists power-supply planning for 12 V DC installations
  • COLOR SILVER
  • PRODUCT TYPE MAGNETIC DOOR LOCK
  • Brand GIANNI
  • Unit Dimensions (mm) 26H x 38W x 70D
  • Series GL-80F SERIES
  • Power 12VDC
  • Mounting SURFACE MOUNT
  • Device Type MAGNETIC CABINET LOCK
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Holding Force 36KG
  • PTO/PTL POWER TO LOCK (FAIL SAFE)
