> >>FSH FEM6600D FEM6600 SERIES ELECTRIC DOUBLE MAG LOCK NON MONITORED 580KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC
Electromagnetic Lock - Double View larger

FSH

FSH FEM6600D FEM6600 SERIES ELECTRIC DOUBLE MAG LOCK NON MONITORED 580KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC

FSHFEM6600D

FEM6600D

New product

Electromagnetic Lock - Double

More details

FEM6600D FSH Non-Monitored Double Electromagnetic Lock - 580 kg per Lock

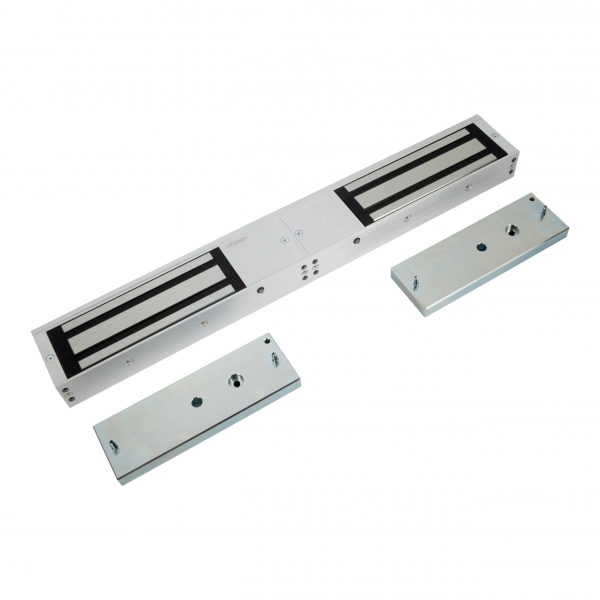

The FSH FEM6600D is a non-monitored double electromagnetic lock for paired-door access-control installations. Its double-lock configuration uses two armature plates, with holding strength of up to 580 kg per single magnetic-lock section.

The lock operates on field-changeable 12 or 24 V DC power and can be activated through compatible credential readers and access-control platforms. It is fire rated for up to two hours in accordance with AS 1905.1:2015.

Key Features

  • Double-lock format supports compatible paired-door installations
  • Field-changeable dual-voltage operation supports 12 or 24 V DC power
  • Built-in MOV varistor provides electrical surge protection
  • No residual magnetism remains after power is removed
  • Covered by a five-year mechanical and electronic warranty
  • Certifications 2-hour fire rated
  • Colour Silver
  • Dimensions (H x W x D) 535 x 73 x 40mm
  • Holding Strength Up to 580kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 60 Months
  • Brand FSH
  • Series FEM6600 SERIES
  • Power 12 or 24VDC
  • Device Type DOUBLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored NON MONITORED
  • Lock Status Sensor (LSS) NO
  • Door Status Sensor (DSS) NO
  • Holding Force 580KG
  • Fire Rating 2 HOUR FIRE RATING
  • LED Indicator NO
