> >>FSH FEM4300DM-HV FEM4300M SERIES ELECTRIC DOUBLE MAG LOCK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR LED INDICATOR 280KG
FSH FEM4300DM-HV 280KG DOUBLE ELECTROMAGNETIC LOCK MONITORED HI-VIS LED 12/24VDC View larger

FSH

FSH FEM4300DM-HV FEM4300M SERIES ELECTRIC DOUBLE MAG LOCK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR LED INDICATOR 280KG

FSHFEM4300DM-HV

FEM4300DM-HV

New product

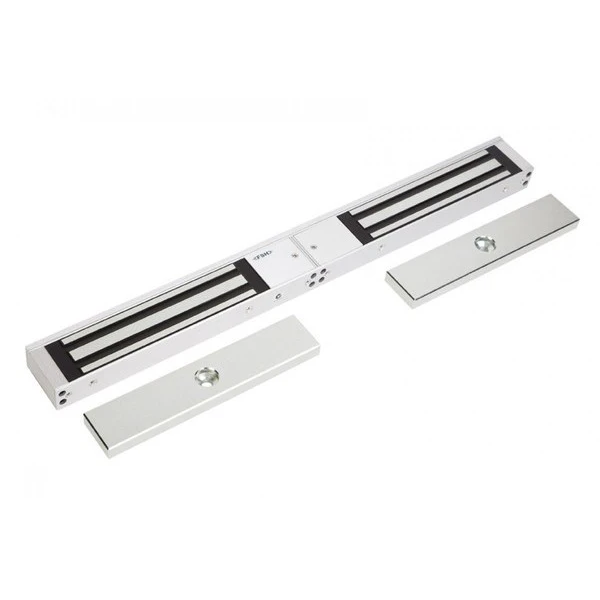

FEM4300DM-HV Monitored Double Electromagnetic Lock - 12/24 V DC

The FSH FEM4300DM-HV is a monitored double electromagnetic lock designed for paired doors in indoor dry-use installations. Its field-selectable input operates at 12 or 24 V DC, drawing 2 x 0.50 A at 12 V or 2 x 0.25 A at 24 V.

Suitable for supervised commercial access-control applications, the FEM4300DM-HV provides both remote monitoring and local visual indication across the double-door opening. A filtered and regulated DC supply supports optimal operation, with onboard jumpers used to match the lock to the selected voltage.

Key Features

  • Double-lock format supports coordinated electromagnetic locking across paired-door openings
  • Lock-status relay and reed-switch door sensor provide independent remote condition feedback
  • Off red and green LED states enable rapid identification of power door-open and locked conditions
  • Floating armature mounting maintains surface alignment with each magnet face for consistent operation
  • Mounting arrangements support in-swinging out-swinging and frameless-glass door installations
  • Warranty 60 Months
  • COLOR SILVER
  • PRODUCT TYPE MAGNETIC DOOR LOCK
  • Brand FSH
  • Series FEM4300M SERIES
  • Power 12 or 24VDC
  • Device Type DOUBLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Door Status Sensor (DSS) YES
  • Holding Force 280KG
  • LED Indicator YES
