> >>NIDAC DML-6 GEM SERIES ELECTROMECHANICAL SINGLE DOOR MAGLOCK SILVER 272KG HOLDING FORCE 12 OR 24VDC
Single Door Maglock - 600 LB View larger

NIDAC

NIDAC DML-6 GEM SERIES ELECTROMECHANICAL SINGLE DOOR MAGLOCK SILVER 272KG HOLDING FORCE 12 OR 24VDC

NIDML-6

DML-6

New product

Single Door Maglock - 600 LB

More details

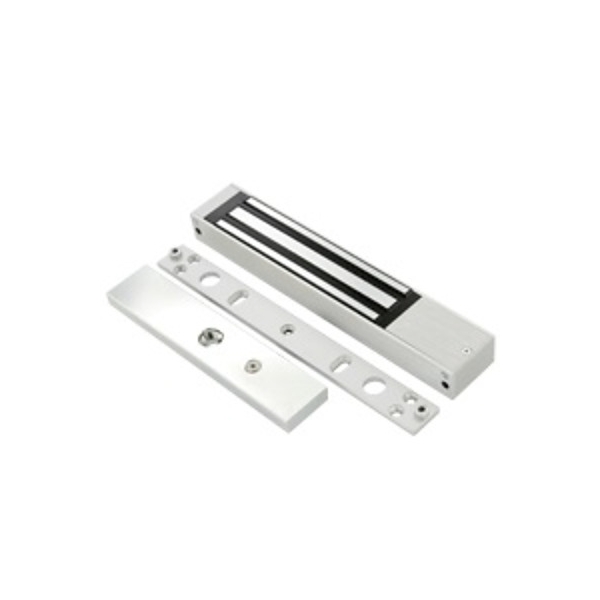

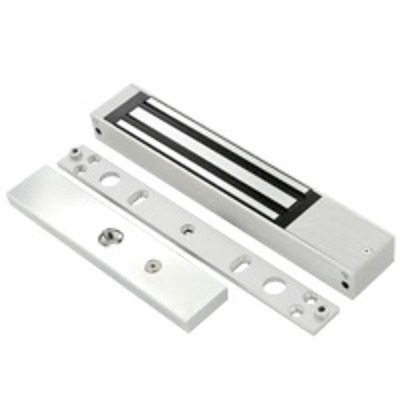

DML-6 GEM Single Door Magnetic Lock - 600 lb

The DML-6 is a GEM EML-SL magnetic lock for fail-safe control of a single access-controlled door. It features an anodised aluminium housing, an adjustable mounting plate and field-selectable operation at either 12 or 24 VDC.

Designed for security-controlled access and egress points, the maglock supports standard out-swinging installations and can accommodate narrow frames, in-swinging doors or frameless glass doors with the appropriate optional bracket. Its bolt-free electromagnetic design releases the door when power is removed.

Key Features

  • Holding force up to 600 lbs (272 kg) static strength
  • Strengthened mounting plate perfectly secures maglock
  • Selectable dual voltage simplifies integration with 12 or 24 VDC systems
  • Suitable for harsh environment
  • Built-in MOV protection helps safeguard the lock against voltage spikes and surges
  • Colour Silver
  • Dimensions (H x W x D) 250 x 44 x 26mm
  • Operating Temperature -10~55ºC
  • Power Rating Holding Force up to 600 lbs (272 Kg)
  • Voltage 12/24VDC (auto-switchable)
  • Warranty 24 MONTHS
  • Weight 2.13 kg
  • Brand NIDAC
  • Unit Dimensions (mm) 250H x 44W x 26D
  • Series GEM SERIES
  • Power 12 or 24VDC
  • Device Type SINGLE DOOR MAGLOCK
  • Elec/Mech ELECTROMECHANICAL
  • Holding Force 272KG
