> >>FSH FES10 SERIES ELECTRIC STRIKE NON MONITORED 1300KG HOLDING FORCE POWER TO LOCK/POWER TO RELEASE SITE INTERCHANGEABLE MORTISE

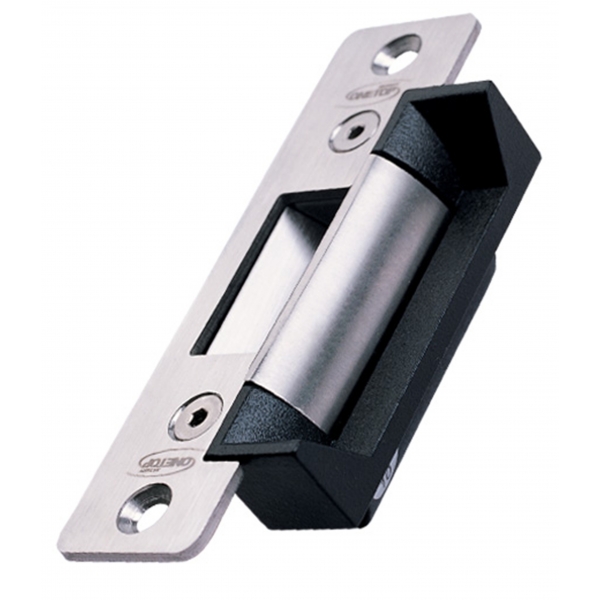

Compact Electric Strike View larger

FSH

FSH FES10 SERIES ELECTRIC STRIKE NON MONITORED 1300KG HOLDING FORCE POWER TO LOCK/POWER TO RELEASE SITE INTERCHANGEABLE MORTISE

FSHFES10

FES10

New product

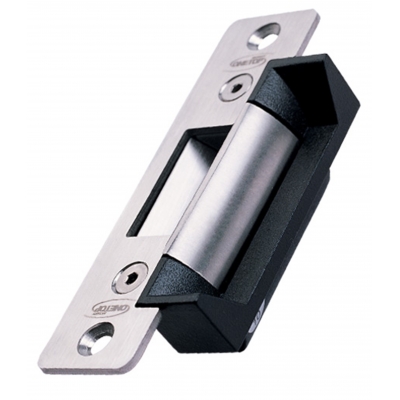

Compact Electric Strike

More details

FES10 FSH Non-Monitored Electric Strike - ANSI Footprint

The FSH FES10 is a non-monitored, mortise-mounted electric strike with a small ANSI footprint, stainless steel faceplate and keeper. Designed for light commercial and residential applications, it provides up to 1300 kg holding strength.

The FES10 is weather resistant to IP56 and has a two-hour fire rating to Australian and British standards. It operates on 12 or 24 V DC and uses a patented Barbell mechanism for site-interchangeable power-to-lock or power-to-release operation.

Key Features

  • Compact ANSI footprint suits space-conscious door installations
  • Site-interchangeable locking function supports on-site configuration
  • Dual-voltage operation accommodates 12 or 24 V DC power supplies
  • Compatible with door latch depths of up to 15 mm
  • Pre-drilled design accommodates optional extension lips
  • Certifications 2 hour fire rated to A.S. and B.S. standards
  • Colour Silver/Black
  • Dimensions (H x W x D) 125 x 42 x 35mm
  • Holding Strength 1000kg
  • IP Rating IP56
  • Voltage Dual Voltage 12VDC/200mA 24VDC/100mA
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 125H x 42W x 35D
  • Series FES10 SERIES
  • Power 12 or 24VDC
  • Mounting MORTISE MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Monitored NON MONITORED
  • Holding Force 1300KG
  • PTO/PTL POWER TO LOCK/POWER TO RELEASE SITE INTERCHANGEABLE
  • Fire Rating 2 HOUR FIRE RATING
