> >>NIDAC EL-GK310-12/24V GK300 SERIES ELECTRIC STRIKE 12 MM KEEPER DEPTH BLACK/SILVER 907KG HOLDING FORCE FAIL SAFE/FAIL
Electronic Strike View larger

NIDAC

NIDAC EL-GK310-12/24V GK300 SERIES ELECTRIC STRIKE 12 MM KEEPER DEPTH BLACK/SILVER 907KG HOLDING FORCE FAIL SAFE/FAIL

NIDEL-GK310-12/24V

EL-GK310-12/24V

New product

Electronic Strike

More details

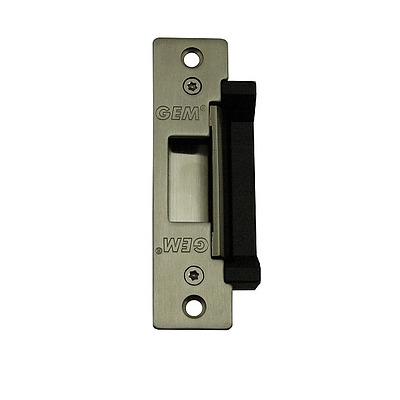

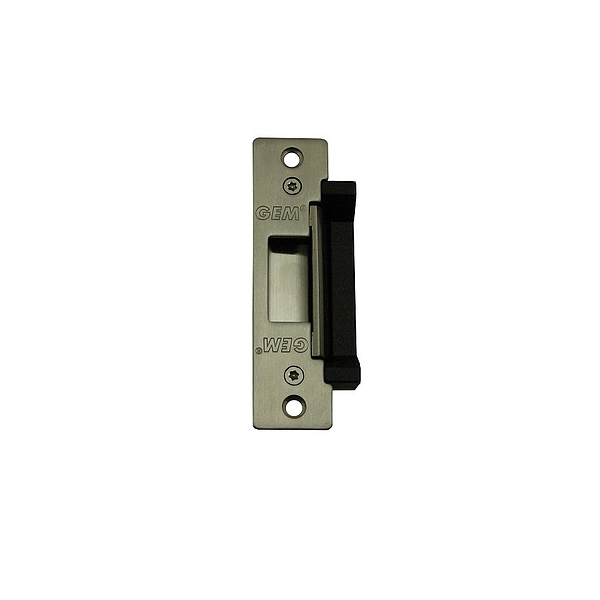

EL-GK310-12/24V GEM GK300 Series ANSI Electric Strike

The GEM EL-GK310-12/24V is a dual-voltage ANSI-sized electric strike designed for flush mounting in hollow metal door frames with latch-bolt locksets. It operates on selectable 12 or 24 VDC and features a stainless steel faceplate with capacity for keeper depths up to 12 mm on in-swinging doors.

The operating mode can be changed in the field between fail-secure power-to-open and fail-safe power-to-lock configurations. The strike has undergone 2,000 lb jaw-strength pull testing and one million operating cycles, while the series documentation records CSIRO fire-resistance testing in accordance with AS 1905 Part 1-1997.

Key Features

  • Selectable dual voltage supports integration with 12 or 24 VDC systems
  • Field-changeable locking mode provides fail-safe or fail-secure flexibility
  • ANSI-sized flush design integrates neatly into compatible hollow metal frames
  • Polarity-free power input helps simplify electrical installation
  • Stainless steel construction supports strength and long service life
  • Colour Black/Silver
  • Dimensions (H x W x D) 124 x 40 x 33mm
  • Operating Temperature -10°C to 45°C
  • Voltage 12/24V DC
  • Warranty 24 MONTHS
  • Weight 380g
  • Brand NIDAC
  • Unit Dimensions (mm) 124H x 40W x 33D
  • Series GK300 SERIES
  • Power 12 or 24VDC
  • Mounting FLUSH MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Backset/Lip 12 MM KEEPER DEPTH
  • Holding Force 907KG
  • PTO/PTL PTL/PTO FIELD CHANGEABLE
