> >>FSH FES15M FES15 SERIES ELECTRIC STRIKE MONITORED DOOR STATUS SENSOR 1200KG HOLDING FORCE PTO/PTL FIELD INTERCHANGEABLE SURFACE
Electric Strike - Rim Surface Mounted - Monitored View larger

FSH

FSH FES15M FES15 SERIES ELECTRIC STRIKE MONITORED DOOR STATUS SENSOR 1200KG HOLDING FORCE PTO/PTL FIELD INTERCHANGEABLE SURFACE

FSHFES15M

FES15M

New product

Electric Strike - Rim Surface Mounted - Monitored

More details

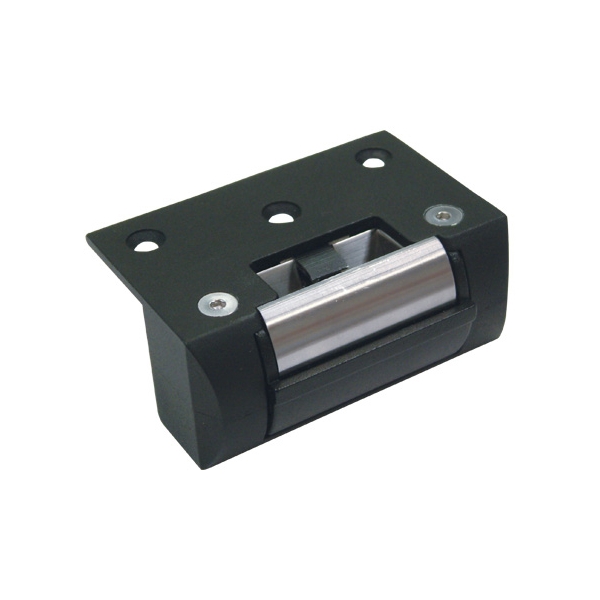

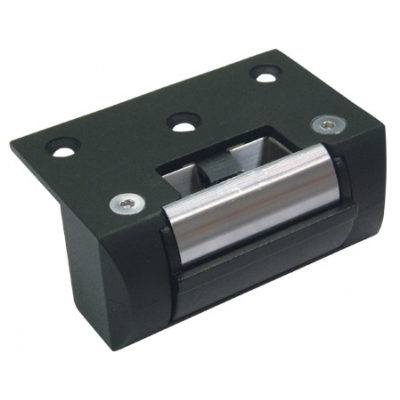

FES15M Monitored Surface-Mount Electric Strike for Rim Locks - 12/24 V DC

The FSH FES15M is a monitored surface-mounted electric strike for rim-latch control. It provides holding strength of up to 1200 kg, operates at 200 mA on 12 V DC or 100 mA on 24 V DC, and incorporates door-status monitoring.

Designed for residential and light commercial applications such as pedestrian gates, the strike can be changed between Power to Lock and Power to Open operation on site. The FES15 Series is fire tested for up to 4 hours under Australian and British fire-test standards.

Key Features

  • Door-status feedback supports supervised operation through a connected access-control system
  • Surface-mounted format provides a practical locking solution for compatible rim latches
  • Barbell mechanism allows the locking function to be reconfigured during installation
  • Low current demand helps limit the load placed on the access-control power supply
  • Five-year warranty coverage supports long-term product ownership
  • Certifications Up to 4-hour fire rating
  • Colour Black/Silver
  • Dimensions (H x W x D) 125 x 42 x 35mm
  • Holding Strength Up to 1200kg
  • Voltage Dual Voltage 12VDC/200mA 24VDC/100mA
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 96H x 50W x 36.9D
  • Series FES15 SERIES
  • Power 12 or 24VDC
  • Mounting SURFACE MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Door Status Sensor (DSS) YES
  • Holding Force 1200KG
  • PTO/PTL PTO/PTL FIELD INTERCHANGEABLE
  • Fire Rating 4 HOUR FIRE RATING
