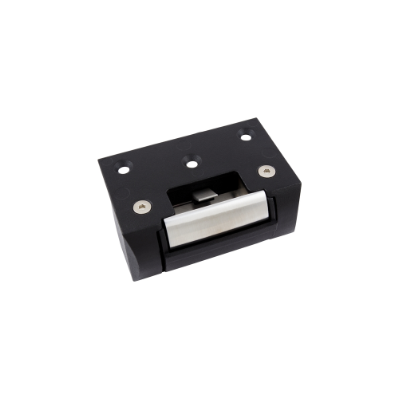

Electric Strike - Rim Surface Mounted View larger

FSH

FSH FES15 SERIES ELECTRIC STRIKE NON MONITORED 1200KG HOLDING FORCE PTO/PTL FIELD INTERCHANGEABLE SURFACE MOUNT 4 HOUR FIRE

FSHFES15

FES15

New product

Electric Strike - Rim Surface Mounted

More details

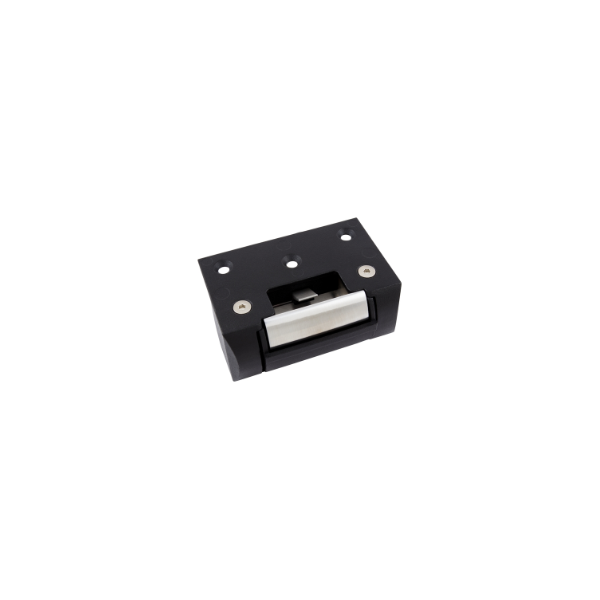

FES15 FSH Non-Monitored Rim-Mounted Electric Strike - 1200 kg

The FSH FES15 is a non-monitored, surface-mounted electric strike designed for rim-latch control. It provides up to 1200 kg holding strength and is intended for residential and light-commercial applications, including pedestrian gates.

The patented Barbell mechanism allows field interchange between Power to Lock and Power to Open operation. The strike accepts 12 or 24 V DC and is fire tested for up to four hours under Australian and British Fire Test Standards.

Key Features

  • Surface-mounted configuration supports compatible rim-latch installations
  • Field-interchangeable locking function enables on-site operating-mode changes
  • Current draw is 200 mA at 12 V DC and 100 mA at 24 V DC
  • High holding strength supports controlled pedestrian access points
  • Covered by a five-year manufacturer warranty
  • Certifications Up to 4-hour fire rating
  • Colour Black/Silver
  • Dimensions (H x W x D) 125 x 42 x 35mm
  • Image Sensor Up to 1200kg
  • IP Rating IP26
  • Voltage Dual Voltage 12VDC/200mA 24VDC/100mA
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 96H x 50W x 36.9D
  • Series FES15 SERIES
  • Power 12 or 24VDC
  • Mounting SURFACE MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Monitored NON MONITORED
  • Door Status Sensor (DSS) NO
  • Holding Force 1200KG
  • PTO/PTL PTO/PTL FIELD INTERCHANGEABLE
  • Fire Rating 4 HOUR FIRE RATING
