> >>FSH FES90M-P-S ELECTRIC STRIKE 10MM LIP BLACK/SILVER MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 35KG PRE-LOAD 1300KG

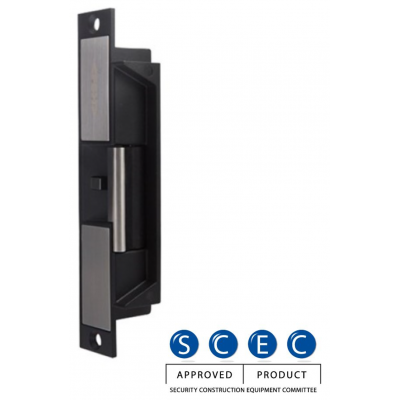

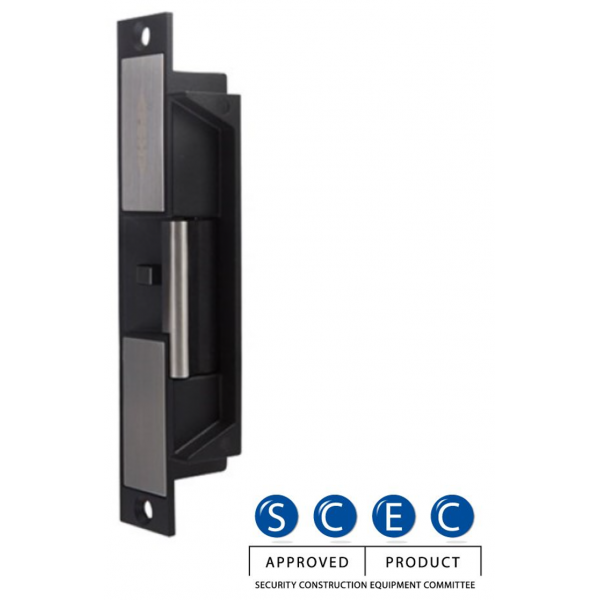

FSH FEM90 SERIES HIGH SECURITY ELECTRIC STRIKE MONITORED 35KG PRE-LOAD FAIL SAFE/FAIL SECURE(FIELD CHANGEABLE) View larger

FSH

FSH FES90M-P-S ELECTRIC STRIKE 10MM LIP BLACK/SILVER MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 35KG PRE-LOAD 1300KG

FSHFES90M-P-S

FES90M-P-S

New product

FSH FES90M-P-S HIGH SECURITY ELECTRIC STRIKE MONITORED FAIL SAFE/FAIL SECURE 1300KG 10-30VDC SILVER

More details

FES90M-P-S FSH Monitored High-Security Electric Strike 10-30 V DC - Silver

The FSH FES90M-P-S is a motorised mortice-mounted high-security electric strike with up to 1,300 kg holding strength and the ability to release under as much as 35 kg of pre-load or side-load. Its Power to Lock and Power to Open modes are field-interchangeable, while the multi-voltage input accepts 10-30 V DC for adaptable system integration.

Lock Status and Door Status sensors monitor the internal locking mechanism and confirm when the door latch is engaged within the keeper. The strike is supplied with a 10 mm lip, is pre-drilled for compatible extension lips and uses less than 15 mA at 12 V DC in Sleep Mode once locked or unlocked.

Key Features

  • Field-interchangeable locking modes support flexible security configuration
  • Releases under up to 35 kg of pre-load to maintain operation under door pressure
  • Dual monitoring provides clear lock and door-status feedback
  • Low-current Sleep Mode reduces ongoing power demand after each locking action
  • Testing to 1.5 million full pre-load cycles supports demanding access-control use
  • Colour Black/Silver
  • Warranty 60 Months
  • COLOR SILVER
  • PRODUCT TYPE ELECTRIC STRIKE
  • Brand FSH
  • Unit Dimensions (mm) 176H x 29W x 44.8D
  • Power 10-30VDC
  • Mounting RECESSED MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Backset/Lip 10MM LIP
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Door Status Sensor (DSS) YES
  • Holding Force 1300KG
  • PTO/PTL PTO/PTL FIELD INTERCHANGEABLE
  • Fire Rating 4 HOUR FIRE RATING
  • Pre-load 35KG
