> >>FSH FES110-PTL FES110 SERIES ELECTRIC DEADLOCK STRIKE SILVER MONITORED 500KG HOLDING FORCE FAIL SAFE (PTL) RECESSED MOUNT 2 HOUR

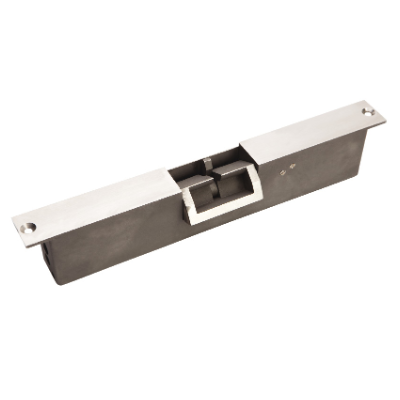

FSH FES110 SERIES HIGH SECURITY ELECTRIC DEADLOCK STRIKE MONITORED FAIL SAFE (PTL) 12-24VDC View larger

FSH

FSH FES110-PTL FES110 SERIES ELECTRIC DEADLOCK STRIKE SILVER MONITORED 500KG HOLDING FORCE FAIL SAFE (PTL) RECESSED MOUNT 2 HOUR

FSHFES110-PTL

FES110-PTL

New product

FSH FES110-PTL ELECTRIC DEADLOCK STRIKE MONITORED FAIL SAFE (PTL) 500KG 12-30VDC SILVER

More details

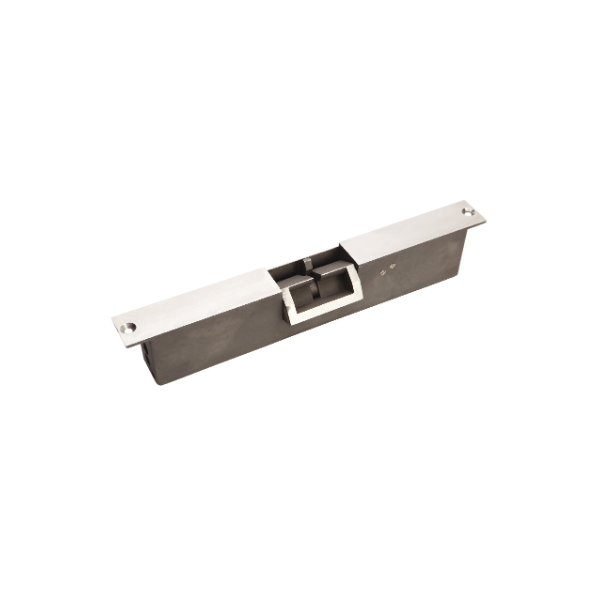

FES110-PTL FSH Monitored Power-to-Lock Electric Deadlock Strike Up to 500 kg - Silver

The FSH FES110-PTL is a high-security electric deadlock strike designed to provide controlled access for door assemblies fitted with square-bolt deadlocks. This Power to Lock model offers up to 500 kg holding strength and accepts a multi-voltage 12-30 V DC input.

Lock Status and Door Status sensors monitor the internal locking mechanism and door-lock tongue for connected system feedback. A stainless steel faceplate and keeper provide a silver appearance, while the series is listed with an up to two-hour fire rating, with application details to be confirmed with Allegion.

Key Features

  • Power-to-lock operation supports fail-safe access-control configurations
  • High holding strength suits demanding square-bolt deadlock assemblies
  • Dual sensors provide visibility of the lock and door status
  • Multi-voltage input simplifies integration across 12-30 V DC systems
  • Stainless steel faceplate and keeper provide a robust contact surface
  • Colour Silver
  • Warranty 24 MONTHS
  • COLOR SILVER
  • PRODUCT TYPE ELECTRIC STRIKE
  • Brand FSH
  • Unit Dimensions (mm) 58H x 32W x 306D
  • Series FES110 SERIES
  • Power 12-30VDC
  • Mounting RECESSED MOUNT
  • Device Type DEADLOCK STRIKE
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Holding Force 500KG
  • PTO/PTL POWER TO LOCK (FAIL SAFE)
  • Fire Rating 2 HOUR FIRE RATING
