> >>GIANNI GIAGK810 GK800 SERIES ELECTRIC STRIKE 12MM LATCH THROW STAINLESS STEEL 363KG HOLDING FORCE FAIL SAFE/FAIL SECURE(FIELD
GK810 ELECTRIC STRIKE STEEL NON-MON 363KG HOLDING FORCE FAIL SAFE/FAIL SECURE (FIELD CHANGEABLE) RECESS MOUNTE View larger

GIANNI

GIANNI GIAGK810 GK800 SERIES ELECTRIC STRIKE 12MM LATCH THROW STAINLESS STEEL 363KG HOLDING FORCE FAIL SAFE/FAIL SECURE(FIELD

GIAGK810

GIAGK810

New product

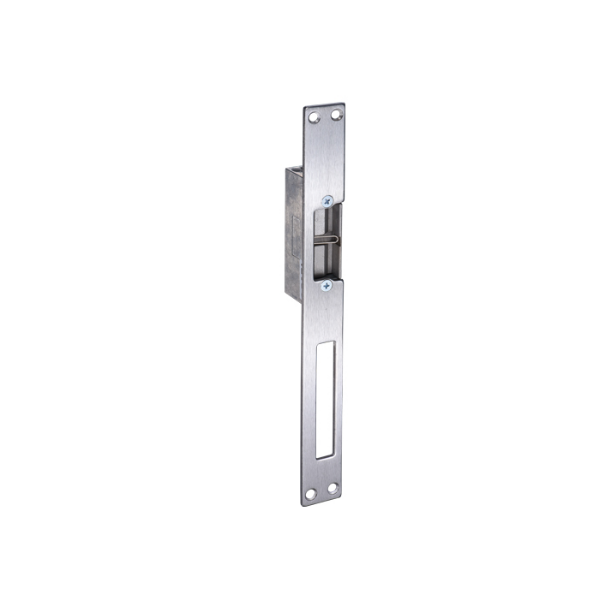

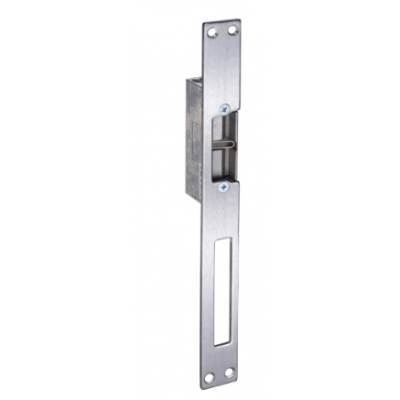

GIAGK810 Gianni GK810 Electric Strike - Non-Monitored Brushed Stainless Steel

The GIAGK810 is a non-monitored European-style electric strike designed for mortise locks with deadbolt entry. It combines zinc-alloy construction with a stainless steel keeper and brushed stainless steel finish, delivering a rated static strength of up to 800 lb (363 kg) for residential and commercial access-control applications.

Fail-safe or fail-secure operation can be selected in the field by reversing the adjustment screw, allowing the strike configuration to be adapted during installation. The non-handed design is fully reversible, while dual 12/24 V DC operation and endurance testing to 1,000,000 cycles support flexible integration and repeated door use.

Key Features

  • European-style configuration supports mortise locks with deadbolt entry
  • Dual-voltage operation accommodates 12 V DC and 24 V DC access-control systems
  • Current draw of 300 mA at 12 V DC or 150 mA at 24 V DC assists power-supply planning
  • Fully reversible non-handed design simplifies installation across different door handing
  • Three-year warranty provides defined coverage against material and workmanship defects
  • Colour STAINLESS STEEL
  • Warranty 36 Months
  • COLOR SILVER
  • PRODUCT TYPE ELECTRIC STRIKE
  • Brand GIANNI
  • Unit Dimensions (mm) 250H x 25W x 44D
  • Series GK800 SERIES
  • Power 12 or 24VDC
  • Mounting RECESSED MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Backset/Lip 12MM LATCH THROW
  • Holding Force 363KG
  • PTO/PTL PTL/PTO FIELD CHANGEABLE
