> >>FSH FES20M FES20 SERIES HIGH SECURITY ELECTRIC STRIKE 10MM LIP MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 1490KG HOLDING
High Security Electric Strike - Monitored View larger

FSH

FSH FES20M FES20 SERIES HIGH SECURITY ELECTRIC STRIKE 10MM LIP MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 1490KG HOLDING

FSHFES20M

FES20M

New product

High Security Electric Strike - Monitored

More details

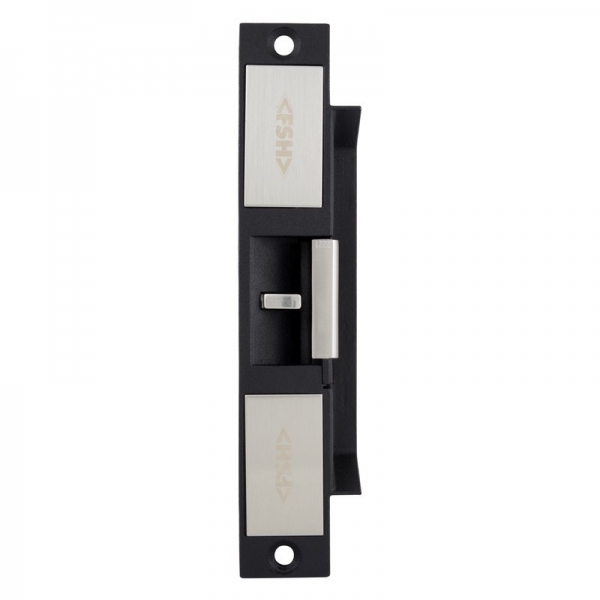

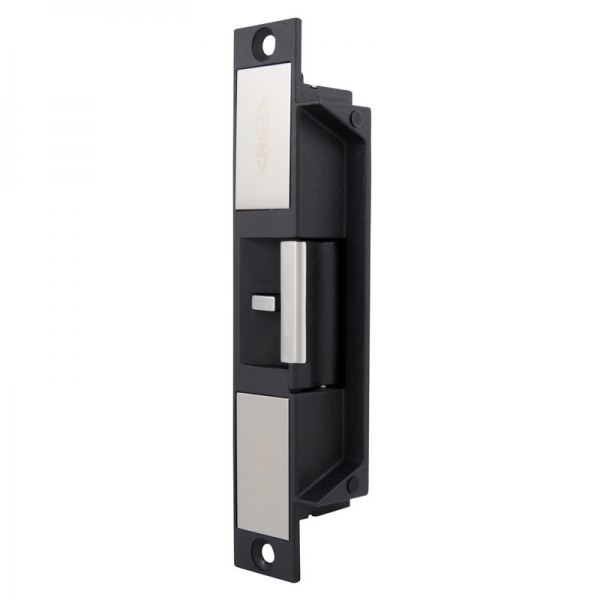

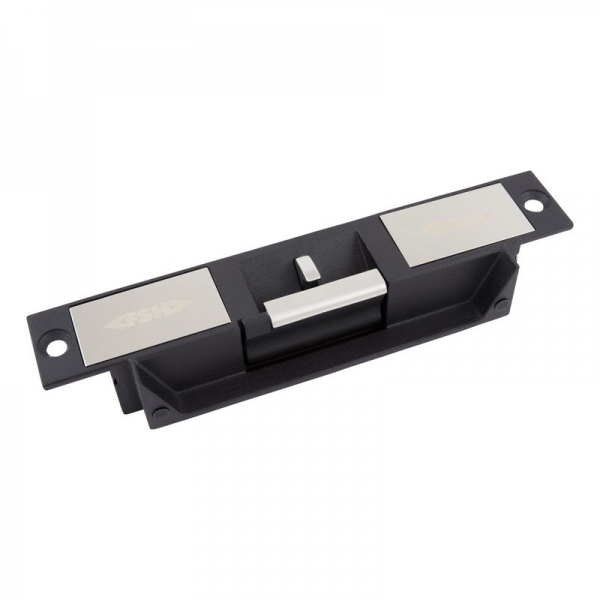

FES20M FSH High Security Monitored Electric Strike - 10 mm Lip

The FSH FES20M is a stainless steel, mortise-mounted high-security electric strike with an Australian footprint and a 10 mm strike lip. It provides up to 1490 kg holding strength and accepts a 12-36 V DC input.

Full monitoring covers door latch status, lock status and strike installation status, including patented anti-tamper monitoring. The FES20M is SCEC approved for secure areas, has a four-hour fire rating and supports site-interchangeable power-to-lock or power-to-release operation.

Key Features

  • Multiple monitoring outputs support access-control supervision
  • Site-interchangeable operation allows the locking function to be configured during installation
  • Wide DC input range accommodates 12 V 24 V and 36 V power arrangements
  • High holding strength supports secure door control applications
  • Compact 10 mm lip reduces projection from the door frame
  • Certifications 4 hour fire rated
  • Colour Black/Silver
  • Holding Strength Up to 1200kg
  • Voltage 12VDC= 220mA 24VDC= 120mA 36VDC= 80mA
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 175.6H x 28.5W x 26D
  • Series FES20 SERIES
  • Power 12-36VDC
  • Mounting MORTISE MOUNT
  • Device Type STRIKE
  • Slimline/Standard HIGH SECURITY
  • Elec/Mech ELECTRIC
  • Backset/Lip 10MM LIP
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Door Status Sensor (DSS) YES
  • Holding Force 1490KG
  • PTO/PTL POWER TO LOCK/POWER TO RELEASE SITE INTERCHANGEABLE
  • Fire Rating 4 HOUR FIRE RATING
