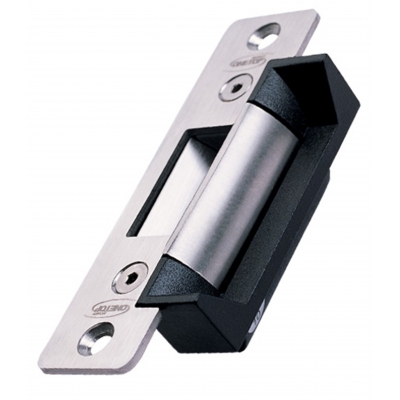

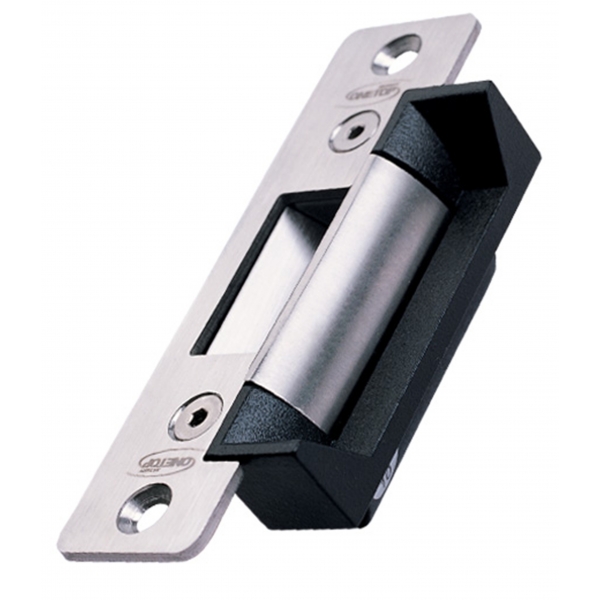

Compact Electric Strike - Monitored View larger

FSH

FSH FES10M FES10 SERIES ELECTRIC STRIKE MONITORED DOOR STATUS SENSOR 1300KG HOLDING FORCE POWER TO LOCK/POWER TO RELEASE SITE

FSHFES10M

FES10M

New product

Compact Electric Strike - Monitored

More details

FES10M Monitored ANSI Footprint Electric Strike - 12/24 V DC

The FSH FES10M is a monitored mortice-mounted electric strike with a compact ANSI footprint, stainless steel faceplate and keeper, and integrated door-latch monitoring. It provides holding strength of up to 1300 kg, dual 12 or 24 V DC operation and site-interchangeable Power to Lock or Power to Release functionality.

Designed for light commercial and residential doors in protected locations, the strike supports installation on timber, metal, aluminium and PVC frames. It accepts latch depths of up to 15 mm and carries a 2-hour fire rating to Australian and British standards.

Key Features

  • Compact ANSI footprint supports discreet integration where door-frame space is limited
  • Field-changeable locking operation gives installers flexibility to configure the function on site
  • Door-latch feedback enables clearer supervision through a connected access-control system
  • Low current demand helps reduce the electrical load in continuously powered installations
  • Pre-drilled construction simplifies the addition of a suitable extension lip when required
  • Certifications 2 hour fire rated to A.S. and B.S. standards
  • Colour Silver/Black
  • Dimensions (H x W x D) 125 x 42 x 35mm
  • Holding Strength 1000kg
  • Voltage Dual Voltage 12VDC/200mA 24VDC/100mA
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 125H x 42W x 35D
  • Series FES10 SERIES
  • Power 12 or 24VDC
  • Mounting MORTISE MOUNT
  • Device Type STRIKE
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Door Status Sensor (DSS) YES
  • Holding Force 1300KG
  • PTO/PTL POWER TO LOCK/POWER TO RELEASE SITE INTERCHANGEABLE
  • Fire Rating 2 HOUR FIRE RATING
