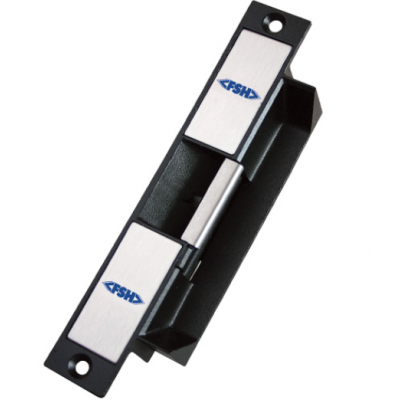

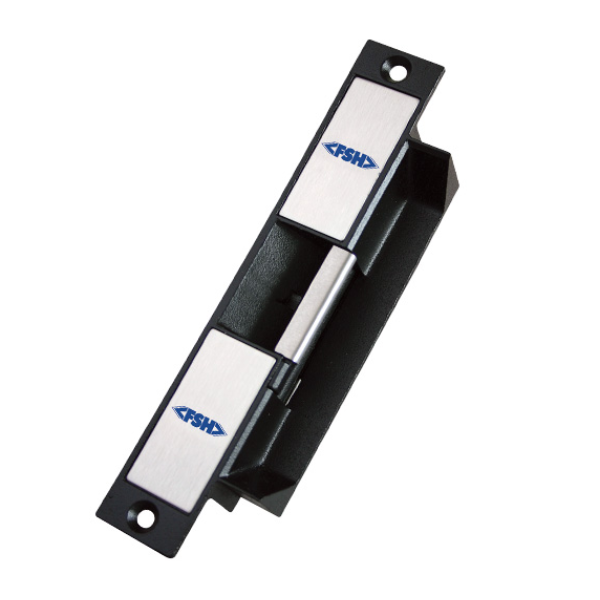

FES20 FSH High Security Non-Monitored Electric Strike - 10 mm Lip

The FSH FES20 is a non-monitored, mortise-mounted high-security electric strike with an Australian footprint and a standard 10 mm lip. Manufactured from stainless steel, it provides up to 1490 kg holding strength.

The strike accepts 12-36 V DC and supports site-interchangeable power-to-lock or power-to-release operation. It has a four-hour fire rating to Australian and British standards.

Key Features

  • Site-interchangeable locking function supports on-site configuration
  • Current draw is 220 mA at 12 V DC 120 mA at 24 V DC and 80 mA at 36 V DC
  • Compact 10 mm lip reduces projection from the door frame
  • Pre-drilled construction accommodates optional extension lips
  • Backed by a five-year manufacturer warranty
  • Certifications 4 hour fire rated
  • Colour Black/Silver
  • Holding Strength Up to 1200kg
  • Voltage 12VDC= 220mA 24VDC= 120mA 36VDC= 80mA
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 175.6H x 28.5W x 26D
  • Series FES20 SERIES
  • Power 12-36VDC
  • Mounting MORTISE MOUNT
  • Device Type STRIKE
  • Slimline/Standard HIGH SECURITY
  • Elec/Mech ELECTRIC
  • Backset/Lip 10MM LIP
  • Monitored NON MONITORED
  • Holding Force 1490KG
  • PTO/PTL POWER TO LOCK/POWER TO RELEASE SITE INTERCHANGEABLE
  • Fire Rating 4 HOUR FIRE RATING
