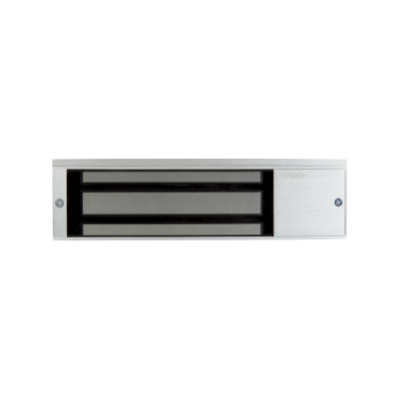

Electromagnetic Lock - Single Monitored

More details

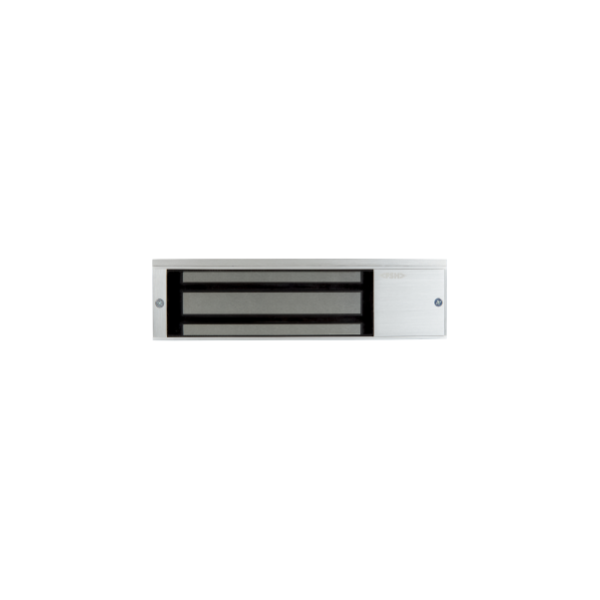

FEM6600M FSH Monitored Single Electromagnetic Lock - 580 kg

The FSH FEM6600M is a monitored single electromagnetic lock with holding strength of up to 580 kg. Lock Status Sensor and Door Status Sensor monitoring are supported by a red-green bi-colour LED indicator.

The lock operates on dual-voltage 12 or 24 V DC power and is intended for commercial access-control applications. It is fire rated for up to two hours in accordance with AS 1905.1:2015.

Key Features

  • Lock and door status monitoring provides two operating-state signals
  • Bi-colour LED displays monitored status information
  • Built-in MOV varistor provides electrical surge protection
  • No residual magnetism remains after power is removed
  • Covered by a five-year mechanical and electronic warranty
  • Certifications 2-hour fire rated
  • Colour Silver
  • Dimensions (H x W x D) 268 x 73 x 40mm
  • Holding Strength Up to 580kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 268H x 73W x 40D
  • Series FEM6600 SERIES
  • Power 12 or 24VDC
  • Device Type SINGLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Door Status Sensor (DSS) YES
  • Holding Force 580KG
  • Fire Rating 2 HOUR FIRE RATING
  • LED Indicator YES
