> >>FSH FEM6600 SERIES ELECTRIC SINGLE MAG LOCK NON MONITORED 580KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC
Electromagnetic Lock - Single View larger

FSH

FSH FEM6600 SERIES ELECTRIC SINGLE MAG LOCK NON MONITORED 580KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC

FSHFEM6600

FEM6600

New product

Electromagnetic Lock - Single

More details

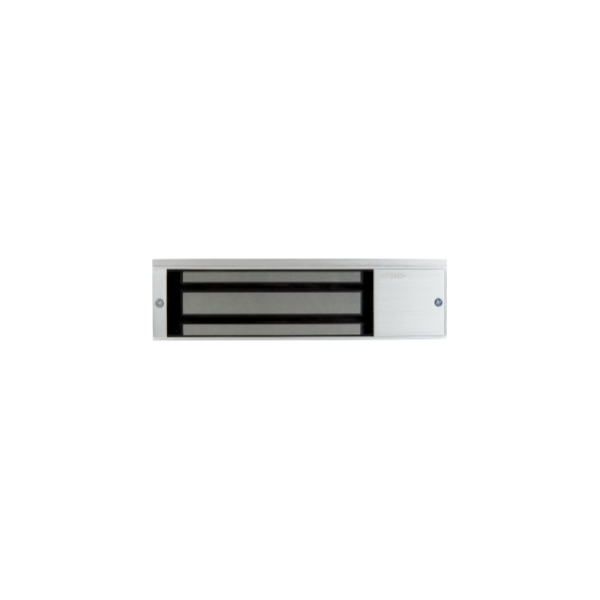

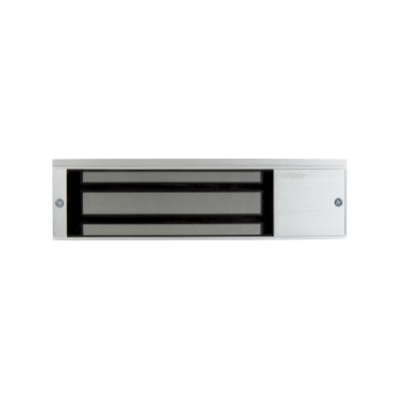

FEM6600 FSH Non-Monitored Single Electromagnetic Lock - 580 kg

The FSH FEM6600 is a non-monitored single electromagnetic lock with holding strength of up to 580 kg. It is designed for electrically controlled locking in commercial access-control applications.

The lock operates on field-changeable 12 or 24 V DC power and can be activated through compatible credential readers and access-control platforms. It is fire rated for up to two hours in accordance with AS 1905.1:2015.

Key Features

  • Single-lock configuration suits compatible single-door installations
  • Field-changeable dual-voltage operation supports 12 or 24 V DC power
  • Built-in MOV varistor provides electrical surge protection
  • No residual magnetism remains after power is removed
  • Covered by a five-year mechanical and electronic warranty
  • Certifications 2-hour fire rated
  • Colour Silver
  • Dimensions (H x W x D) 268 x 73 x 40mm
  • Holding Strength Up to 580kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 268H x 73W x 40D
  • Series FEM6600 SERIES
  • Power 12 or 24VDC
  • Device Type SINGLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored NON MONITORED
  • Lock Status Sensor (LSS) NO
  • Door Status Sensor (DSS) NO
  • Holding Force 580KG
  • Fire Rating 2 HOUR FIRE RATING
  • LED Indicator NO
