> >>FSH FEM4300DM-BLK FEM4300 SERIES SLIMLINE ELECTRIC DOUBLE MAG LOCK BLACK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 280KG
FSH FEM4300 SERIES SLIMLINE ELECTRIC DOUBLE MAGNETIC LOCK BLACK MONITORED LSS DSS LED 280KG HOLDING FORCE FAIL View larger

FSH

FSH FEM4300DM-BLK FEM4300 SERIES SLIMLINE ELECTRIC DOUBLE MAG LOCK BLACK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR 280KG

FSHFEM4300DM-BLK

FEM4300DM-BLK

New product

FSH FEM4300DM-BLK DOUBLE ELECTROMAGNETIC LOCK MONITORED 2X 280KG 12/24VDC BLACK

More details

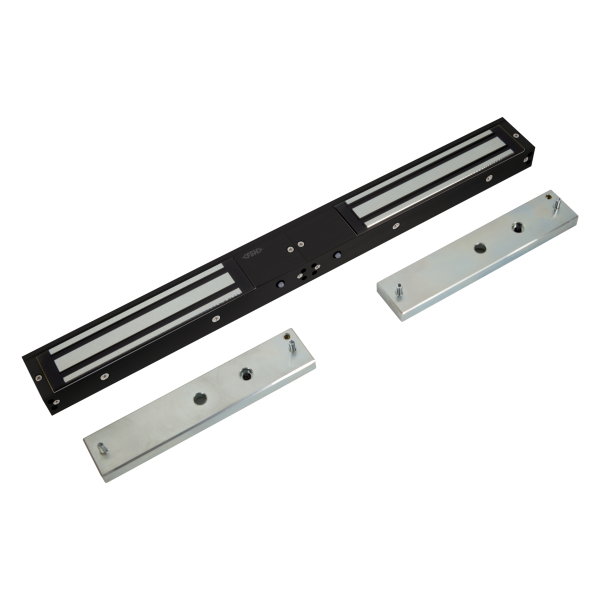

FEM4300DM-BLK FSH Slimline Double Monitored Electromagnetic Lock - Black

The FEM4300DM-BLK is the black double-door monitored model in the FSH FEM4300 Series of slimline surface-mounted electromagnetic locks. It combines fail-safe operation with door and lock status monitoring, plus a red-green LED indicator for visual status feedback. Each magnetic lock provides up to 280 kg of holding strength.

The field-selectable design supports 12 V DC or 24 V DC operation, while the double-lock body measures 477 x 48 x 25 mm and uses two 185 x 38 x 12 mm armature plates. This model forms part of a series documented as fire rated for up to two hours in accordance with AS 1905.1:2015 and carries a five-year mechanical warranty.

Key Features

  • Double-door configuration provides coordinated electromagnetic locking across paired door leaves
  • Two separate armature plates allow each leaf to engage its corresponding magnet
  • Supports activation by PIN pads, fob readers and compatible access-control platforms
  • Built-in MOV surge protection helps protect the lock circuitry from voltage transients
  • No residual magnetism supports clean door release when power is removed
  • Colour Black
  • Warranty 60 Months
  • COLOR BLACK
  • PRODUCT TYPE ELECTRIC STRIKE
  • Brand FSH
  • Unit Dimensions (mm) 25H x 48W x 477D
  • Series FEM4300 SERIES
  • Power 12 or 24VDC
  • Mounting SURFACE MOUNT
  • Device Type DOUBLE MAGNECTIC LOCK
  • Slimline/Standard SLIMLINE
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Door Status Sensor (DSS) YES
  • Holding Force 280KG
  • PTO/PTL POWER TO LOCK (FAIL SAFE)
  • Fire Rating 2 HOUR FIRE RATING
