> >>FSH FEM4300M-HV FEM4300M SERIES ELECTRIC SINGLE MAG LOCK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR LED INDICATOR 280KG
FSH FEM4300M-HV 280KG ELECTROMAGNETIC LOCK MONITORED HI-VIS LED 12/24VDC View larger

FSH

FSH FEM4300M-HV FEM4300M SERIES ELECTRIC SINGLE MAG LOCK MONITORED LOCK STATUS SENSOR DOOR STATUS SENSOR LED INDICATOR 280KG

FSHFEM4300M-HV

FEM4300M-HV

New product

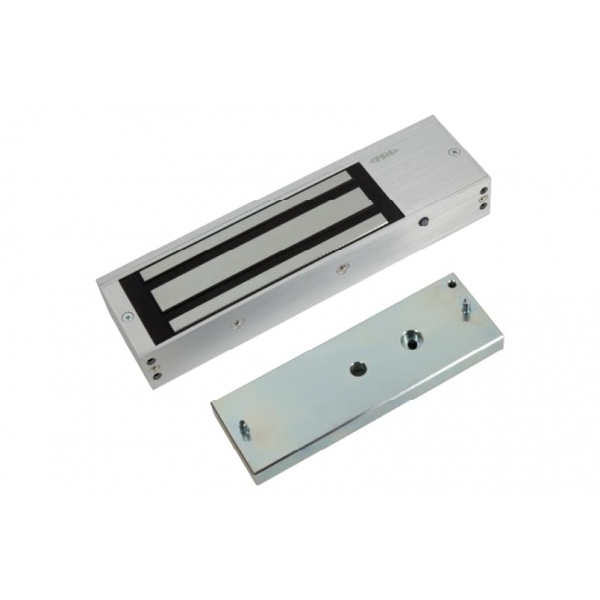

FEM4300M-HV Monitored Single Electromagnetic Lock - 12/24 V DC

The FSH FEM4300M-HV is a monitored single electromagnetic lock for indoor dry-use door installations. It uses a field-selectable 12 or 24 V DC input and draws 0.50 A at 12 V or 0.25 A at 24 V, providing a clearly defined electrical fit for controlled-entry systems.

The lock combines remote monitoring with local LED status indication, allowing the opening condition to be checked at the door or through connected controls. Its mounting arrangements cover in-swinging, out-swinging and frameless-glass doors, while an optional anti-tamper plate can provide added protection and simplify armature placement.

Key Features

  • Lock-status relay provides remote feedback on the magnetic locking condition
  • Separate reed-switch sensor enables independent monitoring of door position
  • Off red and green LED states allow quick identification of power door-open and locked conditions
  • Floating armature mounting supports correct surface alignment for consistent holding performance
  • Defined relay and sensor contact ratings assist accurate interface planning for access-control panels
  • Warranty 60 Months
  • COLOR SILVER
  • PRODUCT TYPE MAGNETIC DOOR LOCK
  • Brand FSH
  • Unit Dimensions (mm) 238H x 48W x 25D
  • Series FEM4300M SERIES
  • Power 12 or 24VDC
  • Device Type SINGLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored MONITORED
  • Lock Status Sensor (LSS) YES
  • Door Status Sensor (DSS) YES
  • Holding Force 280KG
  • LED Indicator YES
