> >>FSH FEM4300 SERIES ELECTRIC SINGLE MAG LOCK NON MONITORED 280KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC
Electromagnetic Lock - Single View larger

FSH

FSH FEM4300 SERIES ELECTRIC SINGLE MAG LOCK NON MONITORED 280KG HOLDING FORCE 2 HOUR FIRE RATING 12 OR 24VDC

FSHFEM4300

FEM4300

New product

Electromagnetic Lock - Single

More details

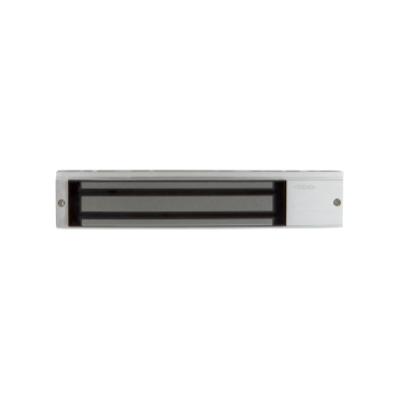

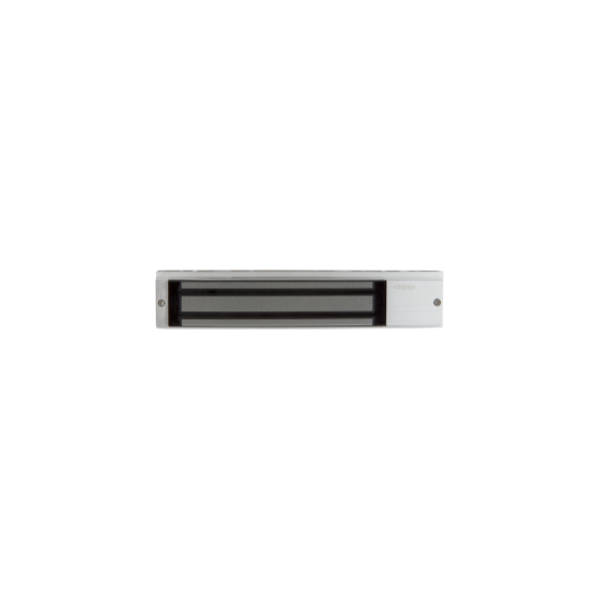

FEM4300 FSH Non-Monitored Single Electromagnetic Lock - 280 kg

The FSH FEM4300 is a non-monitored single electromagnetic lock with an anodised aluminium finish and holding strength of up to 280 kg. It is designed for electrically controlled locking in commercial access-control applications.

The lock operates on field-changeable 12 or 24 V DC and is fire rated for up to two hours in accordance with AS 1905.1:2015. It can be operated through compatible credential readers and access-control platforms.

Key Features

  • Field-changeable dual-voltage configuration supports 12 or 24 V DC operation
  • Current draw is 500 mA at 12 V DC and 250 mA at 24 V DC
  • Built-in MOV varistor provides electrical surge protection
  • No residual magnetism remains after power is removed
  • Covered by a five-year mechanical and electronic warranty
  • Colour Silver
  • Compliance 2-hour fire rated
  • Dimensions (H x W x D) 268 x 48 x 25mm
  • Holding Strength Up to 280kg
  • Voltage Dual Voltage 12/24VDC
  • Warranty 60 Months
  • Brand FSH
  • Unit Dimensions (mm) 238H x 48W x 25D
  • Series FEM4300 SERIES
  • Power 12 or 24VDC
  • Device Type SINGLE MAGNECTIC LOCK
  • Elec/Mech ELECTRIC
  • Monitored NON MONITORED
  • Lock Status Sensor (LSS) NO
  • Door Status Sensor (DSS) NO
  • Holding Force 280KG
  • Fire Rating 2 HOUR FIRE RATING
  • LED Indicator NO
