> >>TANE HARDWIRED ROLLER DOOR REED SWITCH SILVER DETECTION GAP 30MM 1x DPDT OUTPUT METAL SURFACE MOUNT
New TANE HARDWIRED ROLLER DOOR REED SWITCH SILVER DETECTION GAP 30MM 1x DPDT OUTPUT METAL SURFACE MOUNT View larger

TANE

TANE HARDWIRED ROLLER DOOR REED SWITCH SILVER DETECTION GAP 30MM 1x DPDT OUTPUT METAL SURFACE MOUNT

TANMET-204C-AR

TANMET-204C-AR

New product

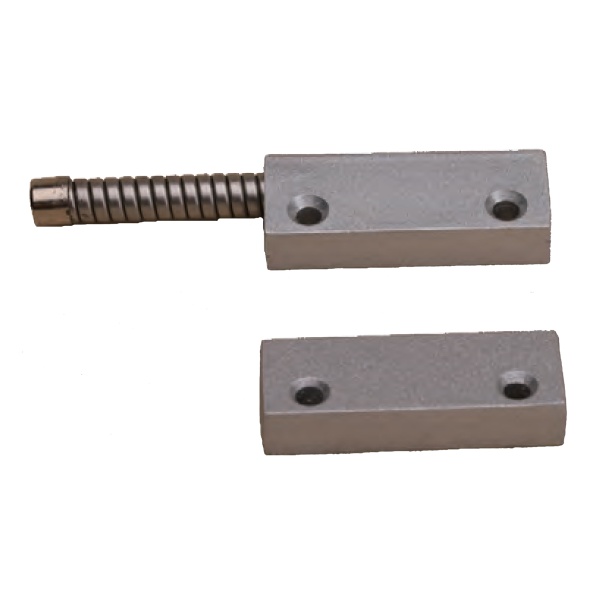

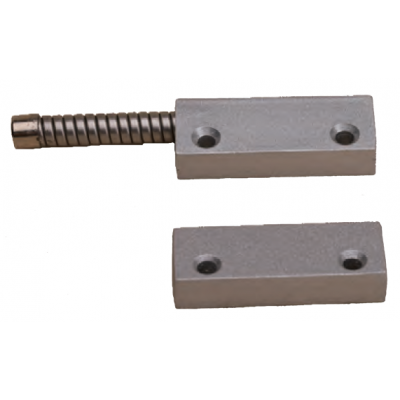

MET-204C-AR Armored Surface Mount Contact with DPDT Switching

The MET-204C-AR is a commercial-grade surface mount magnetic contact featuring a double pole double throw (DPDT) reed switch for applications requiring dual circuit switching. Engineered for secure perimeter detection in demanding environments, this model includes a rugged aluminum housing and stainless steel armored cable for maximum protection against tampering and physical damage. The contact is water-resistant and built to operate reliably across a wide temperature range, making it suitable for both indoor and outdoor security systems.

With a compact footprint of 51 mm x 18.8 mm x 9.5 mm and a standard magnet gap of 30 mm, the MET-204C-AR installs easily onto doors, gates, or industrial enclosures. Its dual switch configuration provides simultaneous control over two independent circuits, offering enhanced flexibility in advanced alarm system setups. This armored contact is ideal for high-risk installations in commercial, industrial, or institutional environments.

Key Features

  • DPDT reed switch allows simultaneous control of two independent circuits
  • Heavy-duty aluminum housing with water-resistant design
  • Includes armored stainless steel cable for enhanced durability
  • Compact dimensions: 51 mm x 18.8 mm x 9.5 mm, standard gap: 30 mm
  • Maximum switching voltage: 30V AC/DC, current: 0.2A
  • COLOR SILVER
  • PRODUCT TYPE REED SWITCH
