> >>TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTOUT
New TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH BROWN DETECTION GAP 15MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 9MM HOLE CUTOUT

TANSTB-10-BR

TANSTB-10-BR

New product

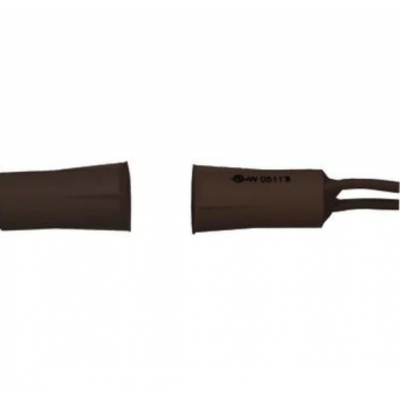

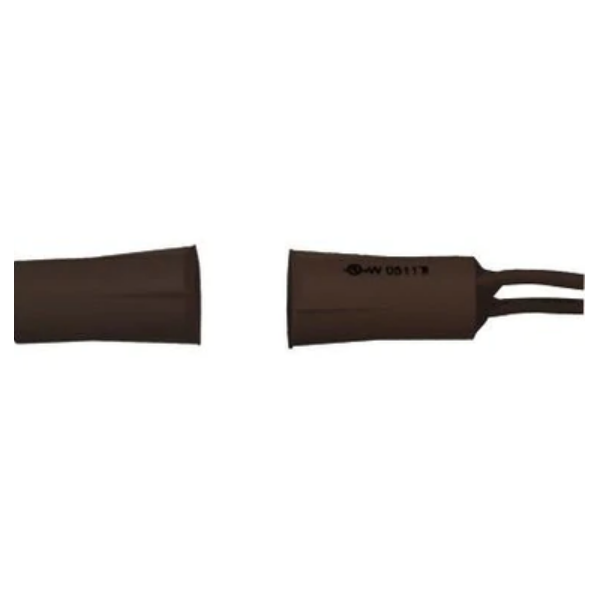

STB-10-BR Recessed Magnetic Contact – Stubby Type (Brown)

The STB-10-BR is a recessed magnetic contact designed for discreet, reliable intrusion detection in both residential and commercial environments. Featuring a normally open reed switch, this stubby-style contact fits snugly into small mounting holes with minimal visual impact. Its brown housing makes it ideal for use in dark-coloured doors or frames, offering a clean, flush installation. The STB-10-BR is engineered to deliver consistent performance with a 15 mm standard gap and durable internal components.

Rated for up to 110V AC or 100V DC at 0.5A, this model is suited for low-voltage alarm systems. It comes pre-wired with 305 mm (12 inch) 22 AWG leads and operates in temperatures ranging from -40°C to +60°C. Measuring 9 mm x 19 mm, the contact and magnet are both compact and efficient, making them ideal for applications that demand subtle, tamper-resistant perimeter protection.

Key Features

  • Normally open stubby-type recessed magnetic contact
  • Rated for 110V AC / 100V DC at 0.5A
  • Standard 15 mm magnet gap for reliable switch activation
  • Compact size: 9 mm (DIA) x 19 mm (L) for both contact and magnet
  • Includes 305 mm (12 inch) 22 AWG leads for easy wiring
  • Operating temperature range: -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
