> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 19.05MM HOLE CU
New TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 19.05MM HOLE CU View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x N/C OUTPUT (DRY) PLASTIC RECESSED MOUNT 19.05MM HOLE CU

TANSD-70-WH

TANSD-70-WH

New product

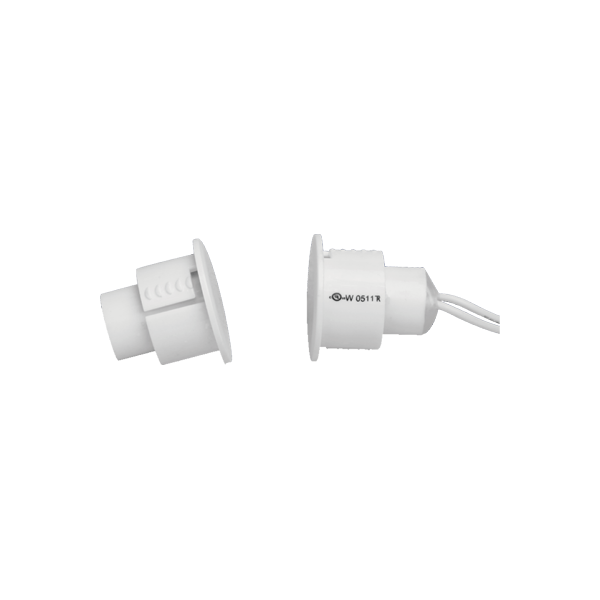

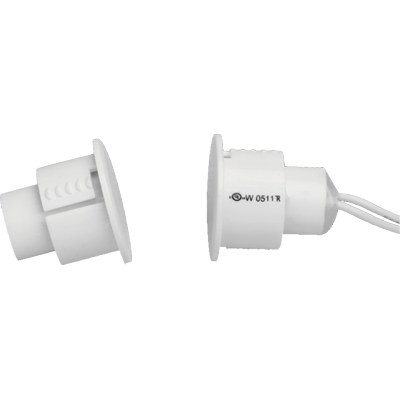

SD-70-WH Recessed Magnetic Contact for Steel Doors (White)

The SD-70-WH is a recessed magnetic contact engineered specifically for steel door installations, offering reliable and discreet intrusion detection. Featuring an SPDT reed switch, it provides Normally Open, Normally Closed, and Common connections, ensuring compatibility with a wide range of alarm panels and systems. This model's design allows it to be embedded directly into the steel frame, offering secure and tamper-resistant performance without visible hardware.

With a standard operating gap of 28 mm and robust electrical ratings up to 110V AC or 100V DC at 0.5A, the SD-70-WH is well-suited for commercial and industrial security setups. Its compact dimensions—19.05 mm diameter by 21.3 mm depth—allow for easy, flush installation. The contact comes pre-wired with 305 mm (12 inch) 22 AWG leads and operates across a temperature range of -40°C to +60°C, making it ideal for harsh environments.

Key Features

  • SPDT switch with NO, NC, and COM terminals for flexible alarm integration
  • Designed specifically for recessed mounting in steel doors
  • Standard magnet gap: 28 mm for dependable activation
  • Dimensions: 19.05 mm (DIA) x 21.3 mm (L), white finish for clean look
  • Rated for 110V AC / 100V DC at up to 0.5A
  • Includes 305 mm (12 inch) 22 AWG leads, -40°C to +60°C operating range
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
