> >>TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 19.05MM HOLE CUTOUT
TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 19.05MM HOLE CUTOUT View larger

TANE

TANE HARDWIRED REED SWITCH WHITE DETECTION GAP 28MM 1x SPDT OUTPUT PLASTIC RECESSED MOUNT 19.05MM HOLE CUTOUT

TANSD-72C-WH

TANSD-72C-WH

New product

SD-72C-WH Recessed DPDT Magnetic Contact for Steel Doors (White)

The SD-72C-WH is a recessed magnetic contact designed for high-security installations in steel doors, offering dual-circuit monitoring through its Double Pole Double Throw (DPDT) reed switch. This model allows for simultaneous control of two independent circuits, making it ideal for advanced intrusion detection systems in commercial, institutional, or industrial facilities. Its white housing provides a clean, discreet finish when embedded into steel door frames.

With a standard magnet gap of 28 mm and a rugged design, the SD-72C-WH supports switching up to 30V AC/DC at 0.2A per circuit. It includes 305 mm (12 inch) 22 AWG leads and operates reliably in temperatures ranging from -40°C to +60°C. Its compact form factor—19.05 mm in diameter and 21.3 mm in length—ensures secure, flush-mounted installation. This model is ideal for applications requiring tamper-resistant, dual-loop protection in high-risk environments.

Key Features

  • DPDT switch supports dual independent circuit connections
  • Recessed design for steel door mounting with discreet white finish
  • Standard 28 mm operating gap for reliable switch activation

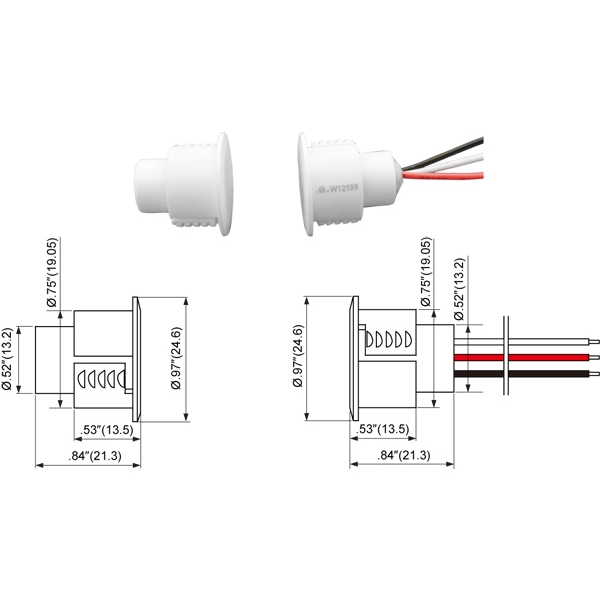

  • Dimensions: 19.05 mm (DIA) x 21.3 mm (L)
  • Rated for 30V AC/DC at 0.2A, includes 305 mm (12 inch) 22 AWG leads
  • Operates in temperatures from -40°C to +60°C
  • COLOR WHITE
  • PRODUCT TYPE REED SWITCH
